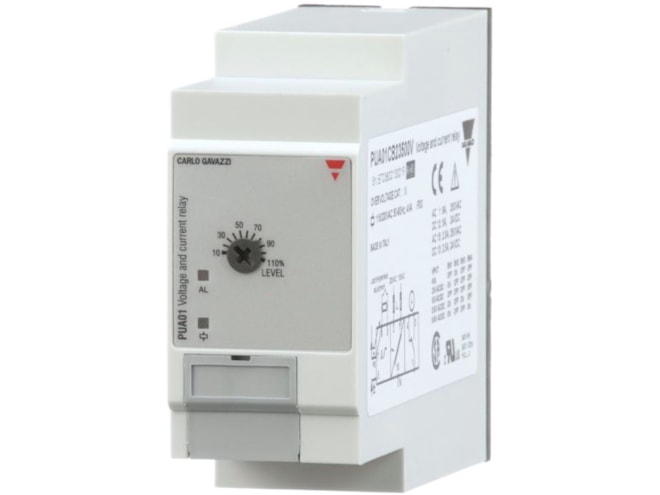

Carlo Gavazzi DUA01 / PUA01 Monitoring Relay

Name: Carlo Gavazzi DUA01 / PUA01 Monitoring Relay
Price: 127.0 USD
Availability: InStock

AC/DC over voltage monitoring relay, selection of measuring range by DIP-switches.

Starting at $127.00

View Company Reviews

Manufactured

By Carlo Gavazzi

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Adjustable voltage limit on relative scale
Mounting options:
- DUA01: DIN-rail
- PUA01: Plug-in module
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
Measuring ranges:
- 2 to 20 VAC/DC
- 5 to 50 VAC/DC
- 20 to 200 VAC/DC
- 50 to 500 VAC/DC
- 0.4 to 4 Vp AC

The Carlo Gavazzi DUA01 / PUA01 monitoring relay's are precise AC/DC over voltage monitoring relays. They can also be used as 1-phase or 3-phase over current monitoring relays when connected with MI or MP current transformers. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

Spec Sheets

Carlo Gavazzi DUA01 / PUA01 Monitoring Relay Datasheet PDF (277 KB)

Links

All possible part numbers

Part Number	Price	Available
DUA01CD48500V Show Configuration	$127.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
