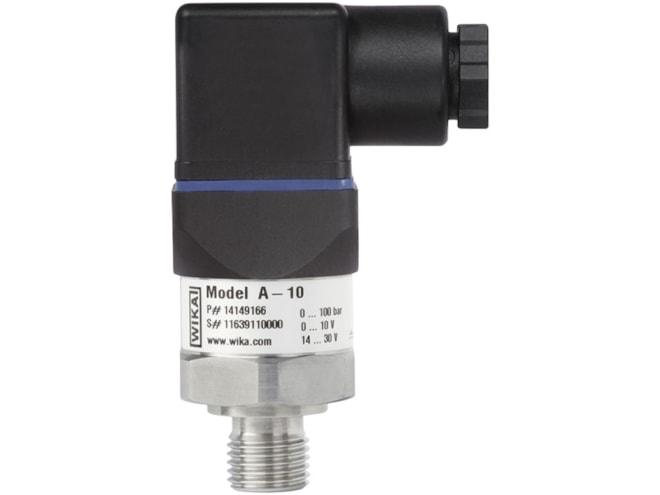

WIKA A-10 Pressure Transmitters

General purpose pressure transmitters designed to fit most industrial and OEM applications.

Starting at $273.72

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Pressure ranges from 0 to 15 psi up to 0 to 10,000 psi
  • Gauge and absolute pressures available
  • Non-linearity: < ±0.5% BFSL (< ±0.25% available)
  • Signal output: 4-20 mA and 0-10 V
  • DIN EN 175301-803 (DIN 43 650) with plug connector
  • Pressure connection: 1/4in NPT
  • cULus approval
  • Supply voltage: 8-30 DC (14-30 VDC)

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability of the A-10 is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the A-10.

Primary applications of the WIKA A-10 pressure transmitter include process control and automation, hydraulics, pneumatics and machine controls.
