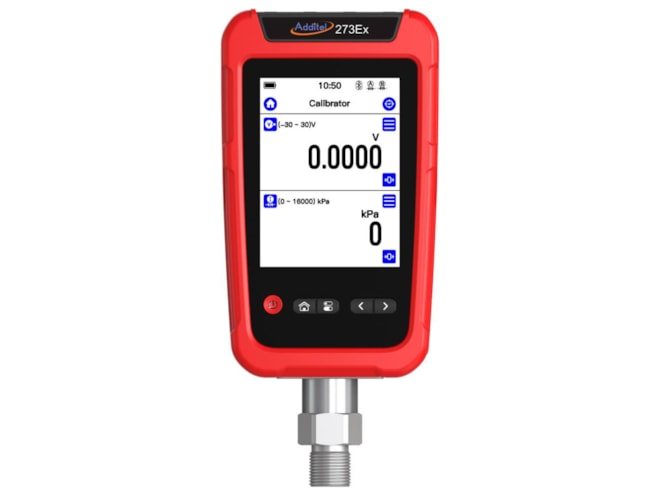

Additel ADT273Ex Handheld Pressure Calibrator

Name: Additel ADT273Ex Handheld Pressure Calibrator
Price: 6289.0 USD
Availability: BackOrder

Intrinsically safe multifunctional pressure calibrator with built-in atmospheric pressure sensor.

Starting at $6,289.00

View Company Reviews

Manufactured

By Additel

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks. Call for expedite options

Product Specs

Features

0.02% and 0.05% FS accuracy (depending on pressure range)
Pressure ranges available:
- Gauge pressures up to 60,000 psi (4,200 bar)
- Compound pressures up to 10,000 psi (700 bar)
Multiple pressure port types available
Color touchscreen display
Built-in barometer
Bluetooth and USB communication
Optional HART communication
ISO 17025 accredited calibration certificate with data
Communicates with Additel's Link mobile app

The Additel ADT273Ex handheld pressure calibrator is an intrinsically safe multifunction pressure calibrator with built-in quick test tasks and optional HART communications capability. The ADT273Ex has a built-in atmospheric pressure sensor, so that absolute pressure and the gauge pressure are easily facilitated. With three pressure module inputs, one switchable at the bottom and two digital inputs on the side, the user can configure the setup accordingly and easily meet the needs of pressure calibration and testing in virtually any environment.

The ADT273Ex has passed ATEX, IECEX, CSA, and UKCA intrinsic safety certifications from authoritative organizations and the explosion-proof level is Ex ia IIC T4 Ga. This means that the ADT273Ex can be used in potentially explosive gas environments, such as oil and gas platforms, refineries, chemical and petrochemical plants, pharmaceutical industry, energy and gas processing industry.
