Alliance Sensors Group LRS-18 LVIT Linear Position Sensor

Contactless, inductive LVIT position sensor for dimensional or position measuring.

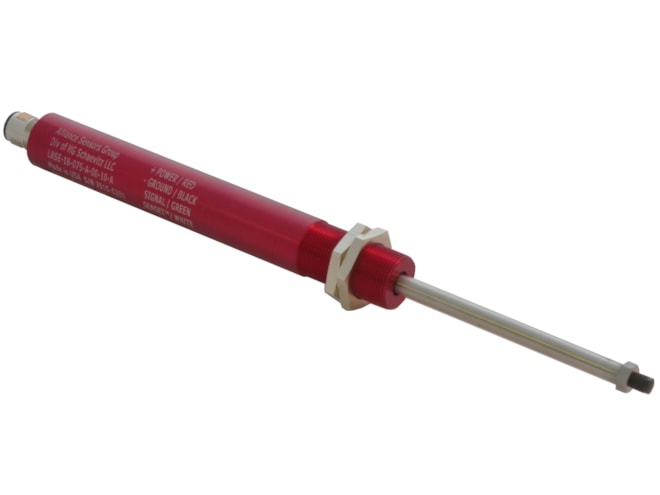

Alliance Sensors Group LRS-18 Series Spring-Loaded LVIT Linear Position Sensor
Alliance Sensors Group LRS-18 Series Spring-Loaded LVIT Linear Position Sensor Product Video

Starting at $459.00

View Company Reviews

Manufactured

By Alliance Sensors Group

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks. Call for expedite options

Product Specs

Features

3 Analog I/Os:
- 0 to 5VDC or 0.5-4.5VDC output with 8 to 30VDC input, 35mA max
- 0 to 10VDC output with 12 to 30 VDC input, 35mA max
- 4 to 20mA (3-wire) output with 18 to 30VDC input, 60mA max (75C max)
12.5 to 100mm (0.5 to 4in) measuring ranges
±0.15 of full scale output linearity error, ±0.25% max
.025% of FSO resolution
IEC IP-67 terminations

The Alliance Sensors Group LRS-18 series of LVIT spring-loaded position sensors are contactless devices designed for dimension or position measuring applications where the sensing element cannot be attached to the object being measured, including in factory automation, automotive testing, mil/aero test stands, robotic arms, and packaging equipment. LRS-18s are offered in full scale ranges from 0.5 to 4.0 inches (12.5 to 100 mm). Maximum tip force on the item being measured is 1 pound.

LRS-18 sensors have a 0.75 inch (19 mm) diameter aluminum or stainless steel body with an M18 x 1 thread and come with two hex jam nuts in place of an 18 mm analog prox sensor. These sensors use a 0.25 inch diameter probe equipped with an AGD No. 9 contact tip, and are offered with either an axial cable or a connector. Operating from a variety of DC voltages. These sensors are available with a choice of four analog outputs and they all include ASG’s proprietary SenSet™ field recalibration feature.
