NOSHOK 910/915 Series RTD

Name: NOSHOK 910/915 Series RTD
Price: 216.66 USD
Availability: InStock

Industrial probe-type RTD with temperature ranges from -330 to 1100°F.

Starting at $216.66

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Three temperature ranges
- -50 to 400°F
- -50 to 750°F
- -330 to 1100°F
PT100 Ω @ 32 °F, α=0.00385 IEC 751 RTD element
50 mW / °C average self heating in moving water
Explosion-proof options: FM/CSA Cl I, Div I, Grps B, C and D; Cl II, Div I, Grps E, F and G

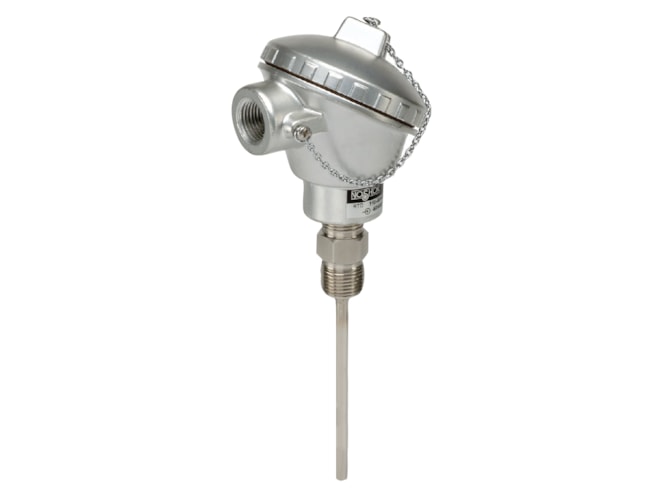

The Noshok 910/915 Series is an industrial probe-type RTD with temperature ranges from -330 to 1100°F. A variety of connection head types are available, including aluminum, polypropylene, and stainless steel. If the 910/915 RTD is used in conjunction with a thermowell, the probe can be replaced in some models without possibility for leakage.

Applications

Industrial boilers
Petrochemical
Exhaust gas monitoring
Food processing

Spec Sheets

Noshok 910/915 Series RTD Datasheet PDF (315 KB)

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Model	Temperature Range	Element Type	Transmitter Output	Process Connection	Stem Length	Stem Diameter	Price	Available
915-50/4001C21U823S10902 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$757.89	9 in stock
915-50/4001C21U823S20902 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$798.19	7 in stock
915-50/4001C21U823S10252 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$744.78	6 in stock
915-50/4001C21U823S11202 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	12in	1/4in	$763.96	6 in stock
915-330/11001C21U823S10252 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$835.47	5 in stock
915-330/11001C21U823S10402 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$838.49	5 in stock
915-330/11001C21U823S10602 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	6in	1/4in	$842.53	5 in stock
915-330/11001C21U823S10902 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$848.58	5 in stock
915-330/11001C21U823S11202 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	12in	1/4in	$854.65	5 in stock
915-330/11002C21U823S10252 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$882.08	5 in stock
915-330/11002C21U823S10402 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$885.10	5 in stock
915-330/11002C21U823S10602 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	6in	1/4in	$889.14	5 in stock
915-330/11002C21U823S10902 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$895.19	5 in stock
915-330/11002C21U823S11202 Show Full Configuration	Spring loaded	-330 to 1100°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	12in	1/4in	$901.26	5 in stock
915-50/4002C21U823S10252 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$791.39	5 in stock
915-50/4002C21U823S10402 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$794.41	5 in stock
915-50/4002C21U823S10602 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	6in	1/4in	$798.45	5 in stock
915-50/4002C21U823S10902 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$804.50	5 in stock
915-50/4002C21U823S11202 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	12in	1/4in	$810.57	5 in stock
915-50/7501C21U823A12406 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	24in	6mm	$616.75	5 in stock
915-50/7501C21U823S10252 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$795.16	5 in stock
915-50/7501C21U823S10402 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$798.18	5 in stock
915-50/7501C21U823S10602 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	6in	1/4in	$802.22	5 in stock
915-50/7501C21U823S10902 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$808.27	5 in stock
915-50/7501C21U823S20252 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$835.46	5 in stock
915-50/7502C21U823S10252 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$841.77	5 in stock
915-50/7502C21U823S10402 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$844.79	5 in stock
915-50/7502C21U823S10602 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	6in	1/4in	$848.83	5 in stock
915-50/7502C21U823S10902 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	9in	1/4in	$854.88	5 in stock
915-50/7502C21U823S11202 Show Full Configuration	Spring loaded	-50 to 750°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	12in	1/4in	$860.95	5 in stock
915-50/4001C21U823A10252 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$523.04	3 in stock
910-50/4001C21D823S10252 Show Full Configuration	Fixed RTD	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, downscale burnout	1/2in NPT male	2.5in	1/4in	$825.39	2 in stock
915-50/4001C21U823A20252 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	2.5in	1/4in	$599.65	2 in stock
915-50/4001C21U823A10402 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$526.06	1 in stock
915-50/4001C21U823A20402 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$602.67	1 in stock
915-50/4001C21U823S10402 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$747.80	1 in stock
915-50/4001C21U823S20402 Show Full Configuration	Spring loaded	-50 to 400°F	PT100 Ω at 0 °C	4 mA to 20 mA, 2-wire, upscale burnout	1/2in NPT male	4in	1/4in	$788.10	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
