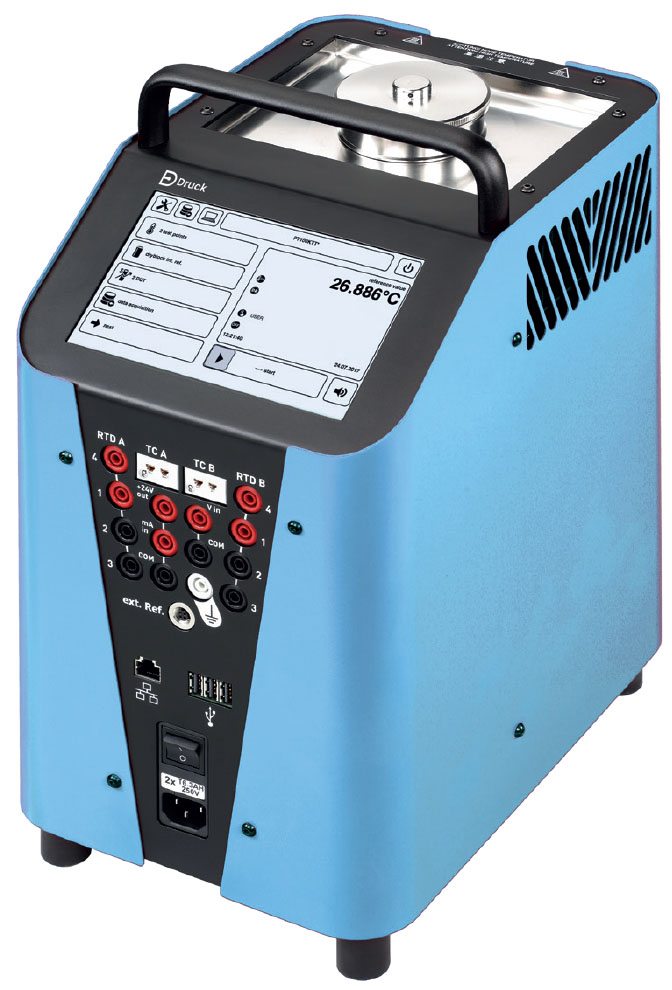

Druck PTC Series Multi-Function Temperature Calibrator

Easy to use temperature calibrator with dry block, calibration bath, IR and surface calibration functions.

Druck PTC165 Multi-Function Temperature Calibrator
Druck PTC165i Multi-Function Temperature Calibrator

Starting at $11,655.00 Found a better price? Let us match.

Effective April 16th, 2025, Druck has added a 7% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 12-14 weeks

Product Specs

Features

-31 to 329°F (-35 to 165°C) temperature range
0.1/0.01/0.001°C (selectable) temperature display resolution
°C/°F/K (selectable) temperature units
±0.018°F (±0.010°C) hysteresis
100 to 240VAC, 50/60Hz power supply
Ethernet, 3x USB interfaces
Functions:
- Dry block
- Calibration bath
- Infrared calibration
- Surface calibration
Optional integrated measuring instrument available
Druck OS with touchscreen

The Druck PTC Series multi-function temperature calibrator is used for the verification of the functionality and calibration of temperature measuring devices and temperature sensors, focusing on long-term reliability and accuracy in combination with ease of operation.

The Druck PTC series is fully tested for accuracy and stability and includes Druck's standard calibration certificate, or by means of an optional ISO 17025 calibration certificate. This is to guarantee that the user receives a properly functioning temperature calibrator which can be traced back to national and international temperature measurement standards.

The Druck PTC series has a large touch screen to display the reference, target and devices under test temperatures. At the end of a calibration process, the PTC provides the complete calibration certificate. The continuously growing bandwidth of supported temperature ranges supports an increasing number of temperature sensors on the market.

The PTC series can be calibrated with a resolution of up to 0.001°C / K and meet the highest requirements, ideal for applications in the food & beverage, pharmaceutical, and power generation industries.

The PTC165i includes integrated measuring instrument which assumes the task of an external measuring instrument. It shows the temperature directly on the calibrator display and enables the fully automatic simultaneous calibration of two devices under test.
