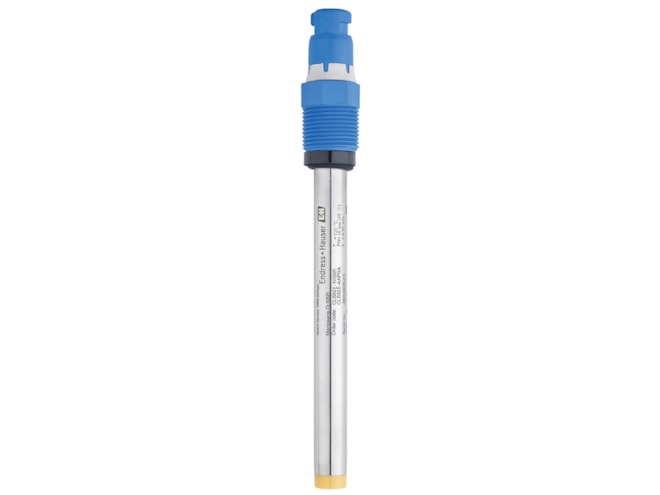

E+H Memosens CLS82E Conductivity Sensor

For hygienic applications in life sciences, food and beverage.

Starting at $2,708.19

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Process temperature
    • -5 to 120°C (23 to 248°F)
    • Max. 140°C at 6bar (284°F at 87psi) for max. 45min for sterilization applications
  • Process pressure
    • 17bar abs at 20°C (247psi at 68°F)
    • 9bar abs at 120°C (131psi at 248°F)
  • Material
    • Process connection: stainless steel 1.4435 (316L)
    • Sensor element: platinum and ceramic
  • 1 µS/cm to 500 mS/cm measurement range

The E+H Memosens CLS82E Conductivity Sensor allows for monitoring of core processes and final rinse using one sensor. Memosens 2.0 digital technology provides extended storage of process and sensor data, facilitating lab calibration and predictive maintenance, and allowing for enhanced IIoT services. The sensor's compact design allows it to fit small pipe diameters and other space-limited installations. International explosion protection approvals such as ATEX, FM, CSA and NEPSI allow for hazardous area use. The sensor is sterilizable and autoclavable. Hygienic materials certified and approved by EHEDG, 3-A and FDA allow for compliance with GMP standards.

Applications

  • Phase separation
  • Downstream processing
  • Fermentation
  • Chromatography
  • Ultrafiltration
  • Final rinse in pharmaceutical applications
E+H Unifit CPA842 Process Assembly
E+H Unifit CPA842 Process Assembly

Hygienically designed assembly for use with pH/ORP, oxygen, and cell growth sensors in tanks and pipelines.

Mfg. has some models in stock
Starting at $633.65

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
CLS82E-AAPG30FCFD Call for information 13 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
