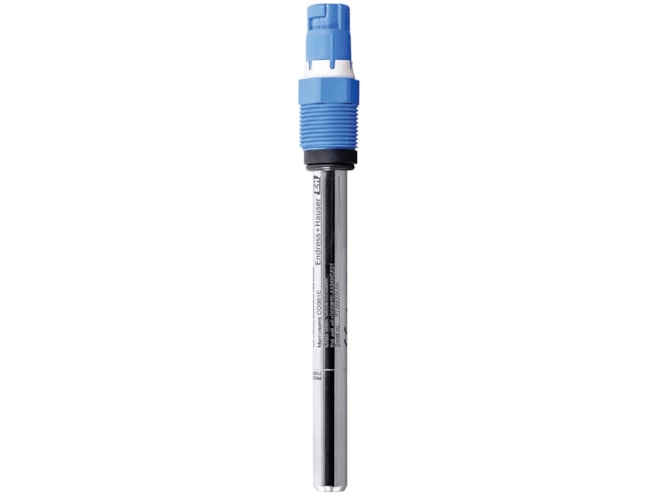

E+H Memosens COS81E Digital Optical Oxygen Sensor

Name: E+H Memosens COS81E Digital Optical Oxygen Sensor
Price: 4814.95 USD
Availability: InStock

Hygienic sensor for oxygen measurement over multiple sterilization cycles.

Starting at $4,814.95

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measurement range
- 0.004 to 30mg/l
- 0.05 to 330%SAT
- 0.1 to 700hPa
Material
- Sensor shaft: Stainless steel 1.4435 (AISI 316L)
- Process seal: FKM (USP<87>, <88> Class VI and FDA)
- Process seal for Ex versions: FKM (not FDA-compliant)
- Seals/O-rings: EPDM, FFKM (USP<87>, <88> Class VI and FDA)
- Spot cap: Stainless steel 1.4435 (AISI 316L), titanium or hastelloy
- Spot layer: Silicone (USP<87>, <88> Class VI and FDA)
1 to 140°C (32 to 284°F) process temperature
0.02 to 13bar abs (0 to 190psi) process pressure

The E+H Memosens COS81E Digital Optical Oxygen Sensor is designed according to EHEDG and ASME BPE. The sensor can be precalibrated in a lab and swapped into a process with plug and play. It does not need polarization time and is immediately ready to measure. A built-in reference LED compensates the aging of the measuring LED.

The sensor can be used in process applications as well as benchtop fermenters, and includes a standard process connection Pg 13.5 that allows for the possibility of installation in standard pH assemblies. Memosens technology provides for extended data storage for predictive maintenance and enhanced IloT services.

Applications

Fermentation
Drinking water production
Inertization
Monitoring of explosive atmospheres with an O2 concentration of ≥2%Vol
Quality control in the food industry

Spec Sheets

E+H Memosens COS81E Digital Optical Oxygen Sensor datasheet (1.6 MB)

Manuals

E+H Memosens COS81E Digital Optical Oxygen Sensor manual (1.9 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
COS81E-AA24ACLB1 Show Configuration	$4,814.95	4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
