Monarch illumiNova Fixed Mount LED Stroboscope

Fixed mount LED stroboscope with 30 to 999,999 FPM flash rate, digital input and output, and phase and time delay for continuous use in high-speed process applications.

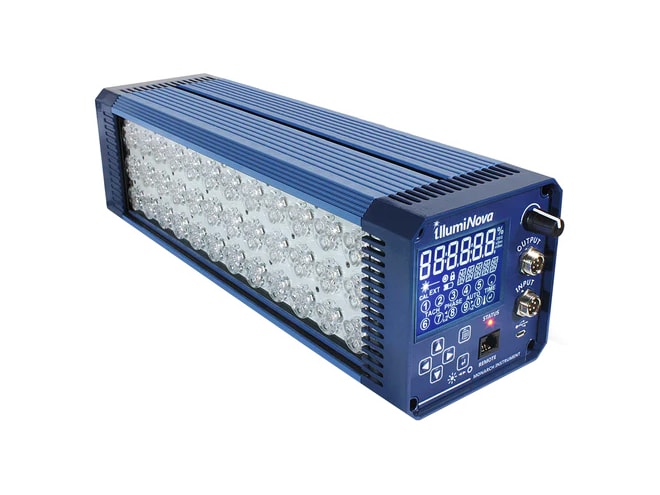

Monarch illumiNova Fixed Mount LED Stroboscope
Monarch illumiNova Fixed Mount LED Stroboscope Display

Starting at $1,425.00

View Company Reviews

Manufactured

By Monarch Instrument

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2 weeks

Product Manual Product Specs

Features

30 to 999,999 FPM flash range
0.001% of setting or +/-1 LSD accuracy
6 digits to 0.001 resolution
LED array sizes from 6 inches to 8 feet
Flash duration:
- 0.1 to 3 degrees for 6" model
- 0.1 to 4 degrees, adjustable in 1-150 μSecs for 1 to 8-foot models
6-digit numeric, 5-digit alphanumeric LCD display with touch keypad and rotary tuning knob
115 or 230 VAC ±10%, 50/60Hz input
TTL compatible input and output jacks
Housing compatible with 80/20 mounting systems
NIST traceable calibration certificate
IP20 housing rating

What's in the Box

115/230 V ac power supply 50/60 Hz
Power cord
Intelligent controller
Mounting hardware
Product documentation
NIST Calibration Certificate

The Monarch illumiNova fixed mount LED stroboscope is designed for continuous use in high-speed applications requiring crisp, clear, stop motion quality inspection. The extraordinarily bright LEDs provide an ultra uniform white spectrum light. The illumiNova stroboscope is available in a six-inch model or one-foot lengths up to eight feet, with three different lens options that ensure light coverage for any job. The powerful on-board, intuitive digital controller allows the user to quickly set flash rates, flash duration, brightness levels, and many other advanced features. Flash rates can also be triggered remotely using machine-mounted sensors connected directly to illumiNova’s digital input, or the optional remote controller can be used to extend the operating distance up to 100 feet.

The illumiNova features digital input/output jacks that allow the user to synchronize the flash with equipment. The illumiNova also offers phase and time delay features that can be used to adjust or position the virtually stopped image, ten memory presets that allow quick changes between process speeds, and three adjustable light intensity levels for complete control over the amount of illumination on the process. The spot lens provides the brightest, most concentrated light pattern over the tightest area of the process. The narrow focal width allows the strobe to be mounted further away from the process while still providing bright uniform lighting. The flood lens Illuminates a longer linear distance on the process. The wide lens Illuminates a narrow band over a much wider area for applications that are wider than the length of the strobe.
