MadgeTech Process110 Current Data Logger

Low level DC current data logger with 10 year battery life.

Retired products cannot be ordered

The MadgeTech Process101A is the recommended replacement

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

10 year battery life
High speed download
Real-time operation
Low cost
Programmable start time
Reusable
Miniature size
User-friendly

Requires IFC200 USB Cable & Software Package (Purchased separately)

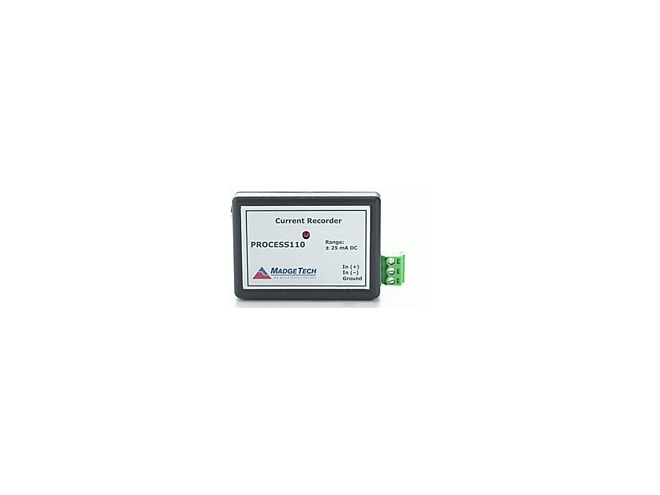

The PROCESS110 is a miniature, battery powered, stand alone current recorder. The PROCESS110 features a real-time clock module that extends the battery life to > 10 years* and allows for high speed downloads. This is an all-in-one compact, portable, easy to use device that will measure and record up to 32,767 measurements. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The PROCESS110 makes data retrieval quick and easy. Simply plug it into an empty com port and our user-friendly software does the rest. Madgetech data logger software.

Applications

4 to 20 milli-Amp recording
pH recording
Low level signal monitoring
Battery studies
Photovoltaic studies
Biological sensor monitoring
Replace costly strip chart recorders
Environmental studies
Remote data logging

Documents

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
