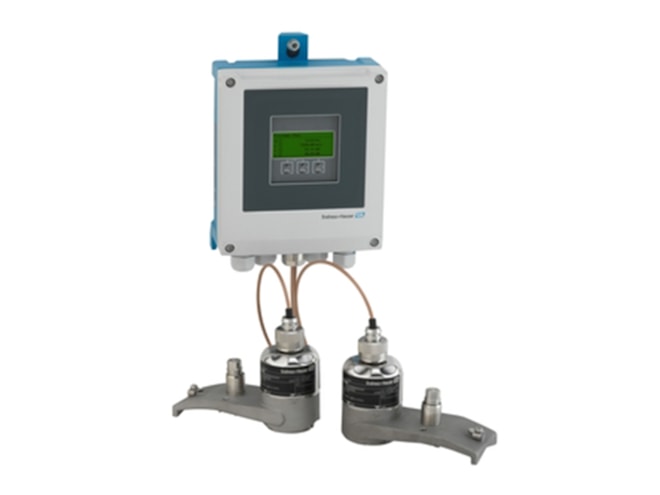

E+H Proline Prosonic Flow W 400 Ultrasonic Flow Meter

Name: E+H Proline Prosonic Flow W 400 Ultrasonic Flow Meter
Price: 5090.68 USD
Availability: InStock

Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry.

Starting at $5,090.68

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

DN 15 to 4000 (1/2 to 160in) nominal diameter range
Volume flow max measurement error
- DN15: ±3% o.r.
- DN25 and above: ±2% o.r.
0 to 50ft per second measuring range
–40 to 266°F medium temperature range
4-20 mA HART output
Stainless steel sensor housing
Single channel
Only 2 x DN inlet and outlet runs required when using 2 sensor sets and FlowDC

Two channel options are also available. Please contact us for more information.

The E+H Proline Prosonic Flow W 400 ultrasonic flow meter is a clamp-on meter providing bidirectional measurement for water and wastewater as well as process water and hydropower plants. The measuring principle is non-invasive and independent of pressure, density, and conductivity. Heartbeat technology provides continuous transparency in processes with its diagnostic, verification, and monitoring functions. With the FlowDC option, the specified accuracy can be maintained despite disturbed flow profiles. The W 400 features a short inlet run, long-term stable signal, maintenance-free permanent mounting from outside with coupling pads, and full remote access via the web server.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
9W4BA2-C6LHGPDAEFABABA2AADCEB Show Configuration	$14,778.74	6 in stock
9W4BA0-C6LHFPDACAAAAEA2 Show Configuration	$4,928.57	5 in stock
9W4BA2-C6LHGPDACAFBADA2AADCEB Show Configuration	$14,944.39	4 in stock
9W4BA0-AALHFNDAAAAAADA2 Show Configuration	$5,139.08	1 in stock
9W4BA0-C6LHFPDADAAAAEA2AA Show Configuration	$4,928.57	1 in stock
9W4BA1-AALHFNDACAAAAEA2 Show Configuration	$8,621.72	1 in stock
9W4BA2-C6LHGPDACFFBACA2AADCEB Show Configuration	$16,335.32	1 in stock

Base Price:: $4,422.75
Model: 2 sets (+$7,429.78)
Approval, Transmitter, Sensor: CSA C/US NI Cl.I Div.2 Gr. ABCD
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control plus WLAN (+$214.89)
Transmitter Housing: Remote, aluminum, coated (+$191.76)
Electrical Connection: Thread NPT1/2
Sensor Version: C-500 (5 MHz)
Process Temperature: 32 to 266°F (0 to 130°C) (+$1,487.64)
Cable: 10m/30ft, -40 to 176°F (-40 to 80°C) (+$244.61)
Installation Set: DN32 to DN65, 1 1/4 to 2 1/2in
Device Model: 2
Language: English
Sensor Option: None
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 1 set
Approval, Transmitter, Sensor: CSA C/US NI Cl.I Div.2 Gr. ABCD
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control
Transmitter Housing: Remote, aluminum, coated (+$191.76)
Electrical Connection: Thread NPT1/2
Sensor Version: C-100 (1 MHz)
Process Temperature: -4 to 176°F (-20 to 80°C)
Cable: 5m/15ft, -40 to 176°F (-40 to 80°C)
Installation Set: DN200 to DN600, 8 to 24in (+$314.06)
Device Model: 2
Language: None (English standard)
Sensor Option: None
Customized Parameterization: None
Application Package: None
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 2 sets (+$7,429.78)
Approval, Transmitter, Sensor: CSA C/US NI Cl.I Div.2 Gr. ABCD
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control plus WLAN (+$214.89)
Transmitter Housing: Remote, aluminum, coated (+$191.76)
Electrical Connection: Thread NPT1/2
Sensor Version: C-100 (1 MHz)
Process Temperature: -4 to 176°F (-20 to 80°C)
Cable: 10m/30ft, -40 to 266°F (-40 to 130°C) (+$1,488.00)
Installation Set: DN150 to DN200, 6 to 8in (+$409.90)
Device Model: 2
Language: English
Sensor Option: None
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 1 set
Approval, Transmitter, Sensor: Non-hazardous area
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control
Transmitter Housing: Remote, polycarbonate
Electrical Connection: Thread NPT1/2
Sensor Version: C-030 (0.3 MHz) (+$511.34)
Process Temperature: -4 to 176°F (-20 to 80°C)
Cable: 5m/15ft, -40 to 176°F (-40 to 80°C)
Installation Set: DN150 to DN200, 6 to 8in (+$204.99)
Device Model: 2
Language: None (English standard)
Sensor Option: None
Customized Parameterization: None
Application Package: None
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 1 set
Approval, Transmitter, Sensor: CSA C/US NI Cl.I Div.2 Gr. ABCD
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control
Transmitter Housing: Remote, aluminum, coated (+$191.76)
Electrical Connection: Thread NPT1/2
Sensor Version: C-200 (2 MHz)
Process Temperature: -4 to 176°F (-20 to 80°C)
Cable: 5m/15ft, -40 to 176°F (-40 to 80°C)
Installation Set: DN200 to DN600, 8 to 24in (+$314.06)
Device Model: 2
Language: English
Sensor Option: None
Customized Parameterization: None
Application Package: None
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 1 set (+$3,884.91)
Approval, Transmitter, Sensor: Non-hazardous area
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control
Transmitter Housing: Remote, polycarbonate
Electrical Connection: Thread NPT1/2
Sensor Version: C-100 (1 MHz)
Process Temperature: -4 to 176°F (-20 to 80°C)
Cable: 5m/15ft, -40 to 176°F (-40 to 80°C)
Installation Set: DN200 to DN600, 8 to 24in (+$314.06)
Device Model: 2
Language: None (English standard)
Sensor Option: None
Customized Parameterization: None
Application Package: None
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Base Price:: $4,422.75
Model: 2 sets (+$7,429.78)
Approval, Transmitter, Sensor: CSA C/US NI Cl.I Div.2 Gr. ABCD
Power Supply: 100-240VAC/24VAC/DC
Output and Input: 4-20mA HART, pulse/frequency, switch output
Display and Operation: 4-line illum, touch control plus WLAN (+$214.89)
Transmitter Housing: Remote, aluminum, coated (+$191.76)
Electrical Connection: Thread NPT1/2
Sensor Version: C-100 (1 MHz)
Process Temperature: 32 to 266°F (0 to 130°C) (+$1,487.64)
Cable: 10m/30ft, -40 to 266°F (-40 to 130°C) (+$1,488.00)
Installation Set: DN50 to DN150, 2 to 6in (+$313.19)
Device Model: 2
Language: English
Sensor Option: None
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: None
Accessory Enclosed: None
Firmware Version: Standard
Marking: None
Tagging: Not available without marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
9W4BA1-AALIFPDACAABACA1IFP7	Call for information	1	Call to order
9W4BA2-C6LHFPDACAACADA1	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
