Starting at $1,858.46
  • Usually ships in 5-7 business days

Overview

Features

  • 100 mV/g sensitivity
  • ±10% sensitivity tolerance
  • 40g peak acceleration range
  • 1% amplitude nonlinearity
  • Frequency response:
    • Z axis, ±3 dB: 2 to 10,000Hz
    • X and Y axes, ±3 dB: 2 to 7,000Hz
  • 400Ω max output impedance
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Hermetic sealing
  • Integral cable, 16ft Teflon J9T4B, armored
  • Stripped and tinned cable termination
  • 10-32 captive screw
  • Intrinsically safe (optional)

Description

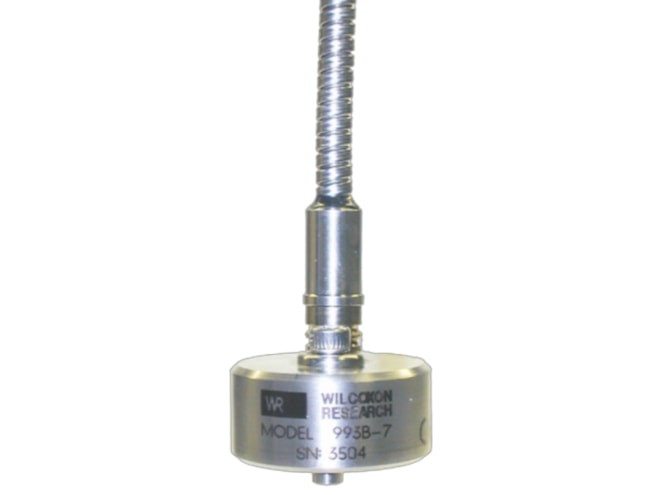

The Wilcoxon Sensing Technologies 993B-7 triaxial accelerometer features a 16-foot armored Teflon integral cable to blunt cut and a stripped and tinned cable termination. It includes a 10-32 captive screw for mounting. The 993B-7 is designed for long-term, reliable use with a 316L stainless steel case. It is case isolated, internally shielded, and hermetically sealed. It features EMI/RFI protection and is manufactured in an ISO 9001 facility.

Wilcoxon's triaxial accelerometers comprise three sensing elements within a single housing. Triaxial accelerometers enable multi-directional data acquisition in a single measurement. Proponents of 3-axis accelerometers cite the increased speed of data collection, inherently consistent readings, and a reduction in wiring for permanent installations.
