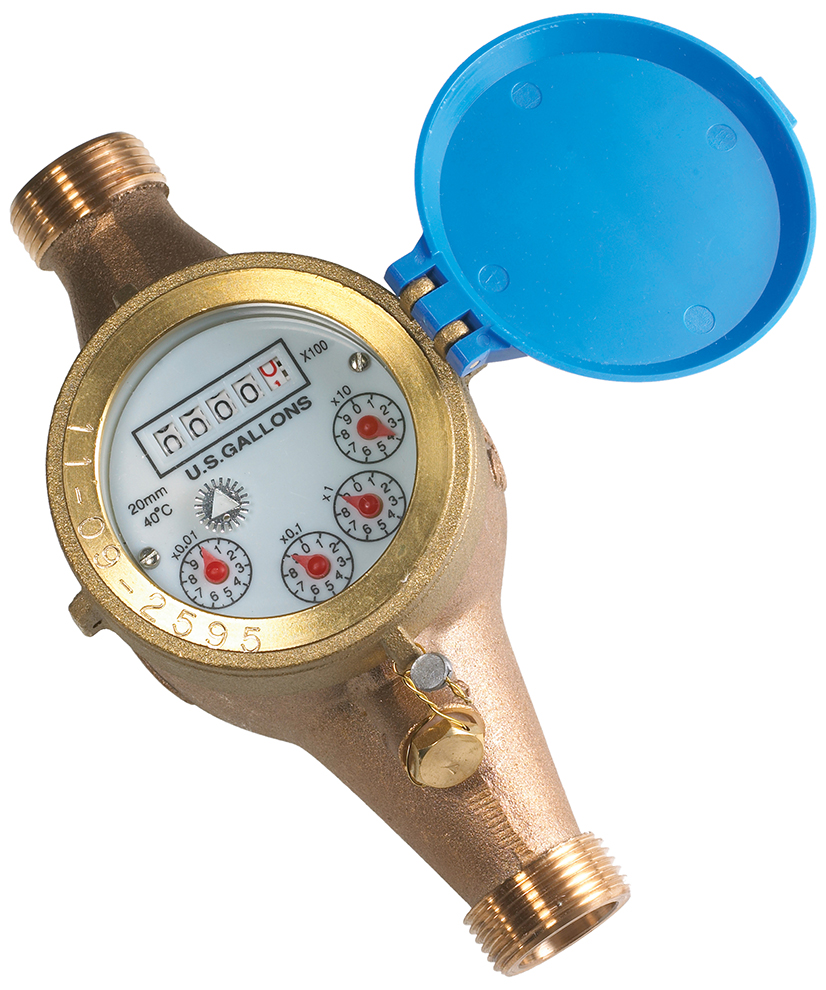

AccentPDIR GLF Series Multi-Jet Water Meter

Multi-jet design water meter, EcoBrass body, NSF61/ANSI372-certified lead-free.

AccentPDIR GLF Series Multi-Jet Water Meter with Reed Switch Pulse Output
AccentPDIR GLF Series Multi-Jet Water Meter, Totalizer Only

Select options for pricing

View Company Reviews

Manufactured

By AccentPDIR

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Product Specs

Features

Certified to NSF/ANSI 61
105°F (40°C) maximum temperature
150psi maximum operating pressure
Materials:
- Body: EcoBrass bronze alloy
- Internals: Engineered thermoplastic
- Magnet: Alnico
±1.5% of reading accuracy within Qt-Qmax
Reed switch sensor
20mA maximum current
24Vdc or Vac maximum voltage
12ft (4m) standard cable (2000ft max run)

The AccentPDIR GLF Series multi-jet water meter uses the widely accepted multi-jet principle. The GLF meter's gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.
