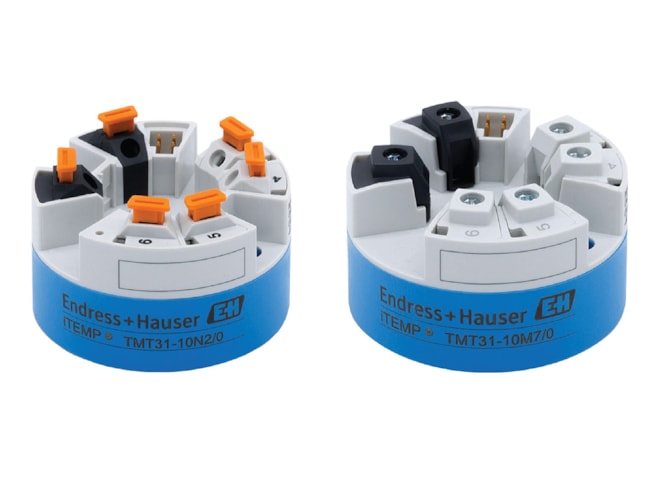

E+H iTEMP TMT31 Head Mount Temperature Transmitter

Name: E+H iTEMP TMT31 Head Mount Temperature Transmitter
Price: 168.34 USD
Availability: InStock

Single-channel 4 to 20 mA temperature transmitter for RTD sensors.

Starting at $168.34

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Input: 1x Pt100 / Pt1000
Output: 1 x analog 4 to 20mA
Accuracy: (Pt100, Pt1000, -58 to 482°F) <= 0.18°F, (Pt100, Pt1000, -50 to 250°C) <= 0.1K
Auxiliary power supply: 10 to 36 V DC
Certification
- ATEX II3G Ex ec IIC Gc
- CSA C/US General Purpose
- CSA C/US NI Cl.I Div.2 Gr.A-D,Ex ec IIC Gc
- ATEX II3G Ex ec IIC Gc + CSA C/US Ex ec IIC Gc
- DNV (GL) marine approval
Configurable or factory-set fixed parameters
Certified for use in Zone 2 (Ex ec) / Div. 2 areas

The E+H iTEMP TMT31 head mount temperature transmitter provides temperature measurement for various industrial and hygienic process applications. Configurated options include push-in terminals for tool-free wiring during installation. Transmitter-sensor matching is done using Callendar-Van Dusen linearization for critical measurement points. Additionally, diagnostics information is done according to NAMUR NE 107.

Installation is done in terminal heads Form B as per DIN EN 50446. The device is available pre-configured or can be parametrized using free software tools (requires FXA291 or TXU10). There is a single RTD sensor input for Pt100 or Pt1000 (2-/3- or 4-wire) sensor and a 4 to 20mA analog output. The sensor is certified for use in Zone 2 (Ex ec) / Div. 2 areas.

Spec Sheets

E+H iTEMP TMT31 Head Mount Temperature Transmitter Datasheet (1.1 MB)

Manuals

E+H iTEMP TMT31 Head Mount Temperature Transmitter Manual (1.4 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
TMT31-CNA1A1A1 Show Configuration	$191.24	14 in stock
TMT31-CAA1A1A1B3C178 Show Configuration	$168.34	1 in stock

Base Price:: $168.34
Approval: CSA C/US NI CI.I Div.2 Gr.A-D, Ex ec II Gc (+$22.90)
Output Signal: 4-20mA
Housing Shape: Form B head transmitter, DIN EN 50446
Electrical Connection: Screw terminals
Sensor Input: Measuring input RTD
Device Model: 1
Sensor Connection: None
Sensor Type: None
Calibration: None
Service: None
Additional Approval: None
Additional Option: None
Accessory Enclosed: None
Firmware Version: None
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $168.34
Approval: CSA C/US General Purpose
Output Signal: 4-20mA
Housing Shape: Form B head transmitter, DIN EN 50446
Electrical Connection: Screw terminals
Sensor Input: Measuring input RTD
Device Model: 1
Sensor Connection: RTD 4-wire
Sensor Type: Pt100, IEC60751 (a=0.00385), -200 to 850°C, min. span 10K
Calibration: None
Service: None
Additional Approval: None
Additional Option: None
Accessory Enclosed: None
Firmware Version: 01.01.xx
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
