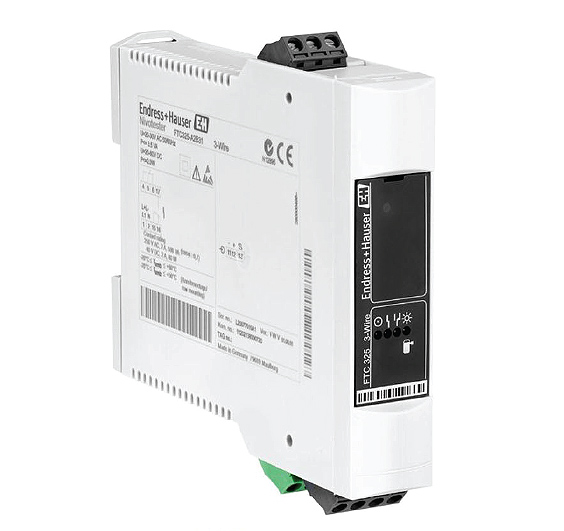

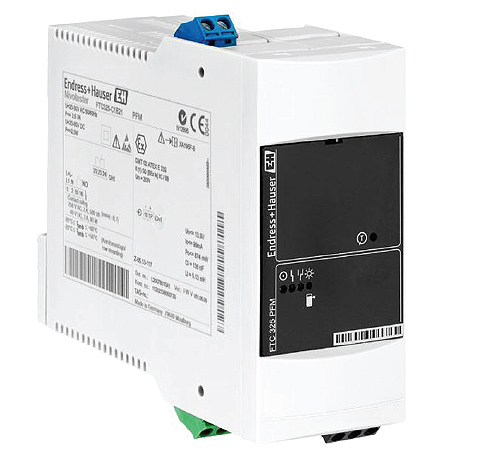

E+H Nivotester FTC325 Point Level Switch

Point level switch with signal circuit for connection to a capacitance sensor.

Starting at $982.92

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Ambient temperature: Serial montage -4 to 122°F (-20 to 50°C)
  • Supply / Communication: 85V to 253V AC (20V to 60V DC)
  • 2 relay communication
  • Two-point control (Δs with 3-Wire option)
  • Pluggable terminal blocks
  • FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function
  • Certificates / Approvals: ATEX, IEC Ex, FM, CSA, TIIS
  • Safety approvals: Overfill protection WHG

The E+H Nivotester FTC325 Point Level Switch is used for point level detection in tanks containing liquids and silos containing bulk solids. Suitable for capacitance level probes, and can be applied in hazardous areas of category ATEX II (1) GD. Additionally the FTC325 contains overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water, and dry running protection for pumps. Additional features include pluggable terminal blocks, compact housing, and a point level and alarm relay. The compact housing design allows for series mounting on a standard DIN rail in the cabinet. Calibration can be done using operating keys. Configurable options for this device include a 2-wire PFM or a 3-wire. The PFM option contains a test/correction key.

E+H Nivotester FTC325 Point Level Switch applications:

  • Point level detection in liquid tanks and bulk solids silos, also in hazardous areas
  • For sensors in Zone 0 or Zone 20
  • Liquid detection in pipes for dry-running protection of pumps
  • Overfill prevention

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Price Available
FTC325-A2A31
Show Configuration
$640.15 2 in stock
FTC325-A2B31
Show Configuration
$640.15 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
