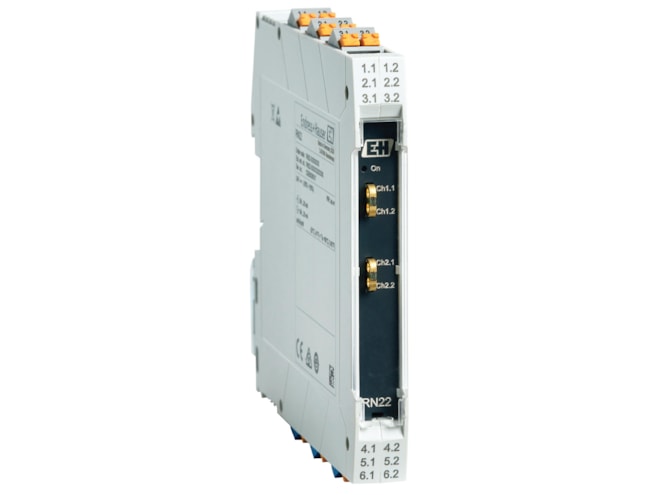

E+H RN22 Active Barrier

Name: E+H RN22 Active Barrier
Price: 211.58 USD
Availability: InStock

Intrinsically safe 24 VDC compact interface module for use in hazardous areas, SIL systems.

Starting at $211.58

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Loop power supply: 17.5 V ±1 V bei 20mA open circuit voltage: 24.5 V ±5%
Input signal range (underrange/overrange): 0 to 22mA feeding/not feeding
Output signal range (underrange/overrange): 0 to 22mA active/passive
Maximum temperature change rate 0.5°C/min, no condensation permitted
Ambient temperature range: -40 to 140°F (-40 to 60°C)
Intrinsic safety for operation in hazardous areas (Zone 2)

The 1- or 2-channel E+H RN22 active barrier powers analog instrument loops and safety instrumented systems up to SIL 2 (SC 3). The intrinsically safe, HART® transparent interface establishes a link between field devices and process control. It interfaces with 2-/4-wire devices in hazardous areas and provides a second galvanically isolated signal output acc. to NAMUR NE 175. This opens a second channel for the process optimization domain without affecting the traditional automation system. No manual hardware settings are required at the device for commissioning.

The RN22 active barrier allows for separation of 0/4 to 20 mA standard signal circuits, optionally available as a signal doubler. The device can be configurated for screw or push-in terminals, or power supply via power rail T-connector. Compact housing also allows for up to two channels on 12.5 mm (0.49 in). Additionally, the connection lugs are integrated on the front for HART® communicators.

Manuals

E+H RN22 Active Barrier Manual (1.9 MB)

Spec Sheets

E+H RN22 Active Barrier Datasheet (878 KB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
RN22-CB1ALT Show Configuration	$231.28	1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
RN221N-B1	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
