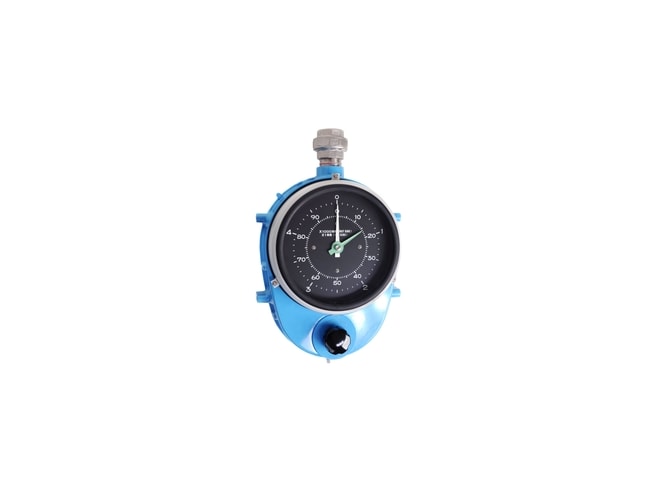

E+H LT5 Float Level Gauge

Name: E+H LT5 Float Level Gauge
Price: 4753.74 USD
Availability: InStock

Mechanical float gauge for accurate and reliable tank-side level measurement of petroleum products and other bulk viscous liquids.

Starting at $4,753.74

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Ambient temperature: -4 to 158°F (-20 to 70°C)
Process temperature(s):
- Low pressure model: -328 to 392°F (-200 to 200°C)
- Middle/High pressure model: -49 to 176°F (-45 to 80°C)
Process pressure / maximum overpressure limit: 1bar abs to 24.5 bar abs (15 psi to 355.25 psi)
Accuracy: ±2mm (± 0.08in)
Measuring range: Maximum 30m (100ft)
Process connection(s):
- Threaded: 1in, 1-1/2in
- Flange: 40A
Design Approval: EN 10204-3.1

E+H LT5 Float Level Gauge provides level indication of petroleum products such as crude oil, kerosene, light and heavy oil, vegetable oil, palm oil, seed oil and animal oil, highly viscous liquid such as asphalt, and certain chemicals (corrosive/toxic vapor can be sealed using a liquid seal pot). Tank-side direct reading allows the user the ability to quickly check the level indication. The LT5 has completely integrated internal mechanisms and no electrical power is required to perform the measurements.

The LT5 contains a built-in repeatability check. This tank gauging instrument can be installed on a variety of tanks, including a fixed roof, floating roof, covered floating roof, or spherical tank. It can be used in conjunction with an analog or digital transmitter to perform task inventory management. Additionally, a standardized guide wire and anchor design permits easy installation. Some specifications include a maximum measuring range of 30m (100ft) and a process pressure of 1bar abs to 24.5 bar abs (15 psi to 355.25 psi). Process temperature limits will depend on the pressure configuration.

Spec Sheets

E+H Float Gauge LT5 Tank Gauging Instrument Datasheet (1012 KB)

Manuals

E+H Float Gauge LT5 Tank Gauging Instrument Manual (1.7 MB)

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
LT5-112D032K000000000000	Call for information	3	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
