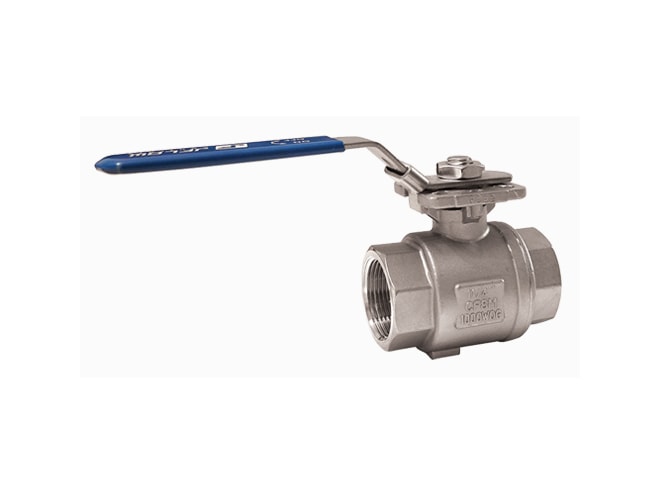

JFlow Controls DM3800 Series Direct Mount Two Piece Ball Valve

Blow-out proof stem design with locking function.

Starting at $395.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual

Features

  • 1/4″ – 3″ options
  • Stainless Steel (CF8 or CF8M)
  • -20 to 300°F temperature range
  • 100% air tested under water at 800-100 psi
  • TFM1600 seat material
  • ISO 5211 direct mounting pad
  • Pneumatic and electric options available

The JFlow Controls DM3800 Series Direct Mount Two Piece Ball Valve features a full port, adjustable stem packing, and optional spring return (dead man) handle. The valve offers a working pressure of 600 (CF8)/800 (CF8M 2-1/2″ +)/1000 (CF8M 1/4″ to 2″) psi.
