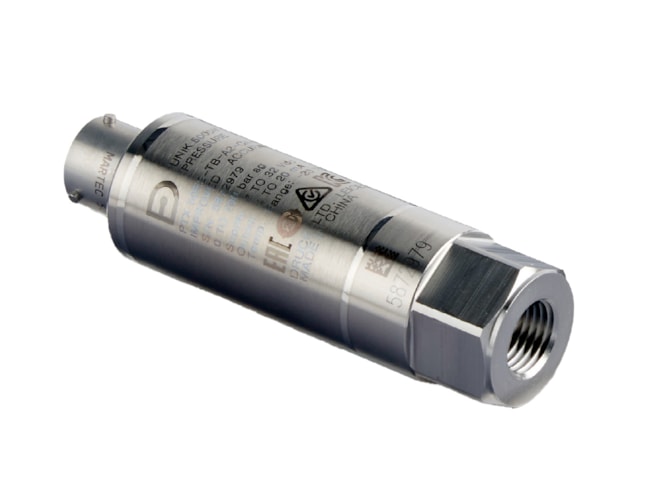

Druck UNIK 5000H Hydrogen Focused Pressure Sensor
Configurable pressure sensor with added hydrogen compatibility.
Overview
Features
- Ranges from 700 mbar (10.2 psi) to 700 bar (10000 psi)
- Custom pressure ranges available
- Accuracy to ±0.04% Full Scale (FS) Best Straight Line (BSL)
- Stainless steel construction
- Hydrogen compatible wetted materials
- Frequency response to 3.5 kHz
- High over pressure capability
- Hazardous area certifications
- mV, mA, voltage and configurable voltage outputs
- Multiple electrical and pressure connector options
- Operating temperature ranges from –55 to 125°C (-67 to 257°F)
- Meets the requirements of EC134 compliant systems
Description
The UNIK5000H takes the existing and widely trusted UNIK5000 configurable pressure sensor and adds Hydrogen compatibility. The use of micromachined silicon technology and analogue circuitry enables best in class performance for stability, low power and frequency response. The new platform enables you to easily build up your own sensor to match your own precise needs. This high performance, configurable solution to pressure measurement employs modular design and lean manufacturing techniques.
Exposure to hydrogen gas can impact the performance of a pressure sensor, specifically via the processes of hydrogen permeation and embrittlement, hence key design aspects need to be considered with a hydrogen pressure sensor to maintain accuracy and stability.
The stainless steel 316L construction of the UNIK5000H provides excellent resistance to hydrogen embrittlement. Permeation can affect the performance of all sensor technologies and the UNIK5000H uses an optimized barrier coating that limits hydrogen permeation and is unaffected by the presence of impurities.
