Name: Additel ADT151 Digital Pressure Module
Price: 4795.0 USD
Availability: BackOrder

Additel ADT151 Digital Pressure Module

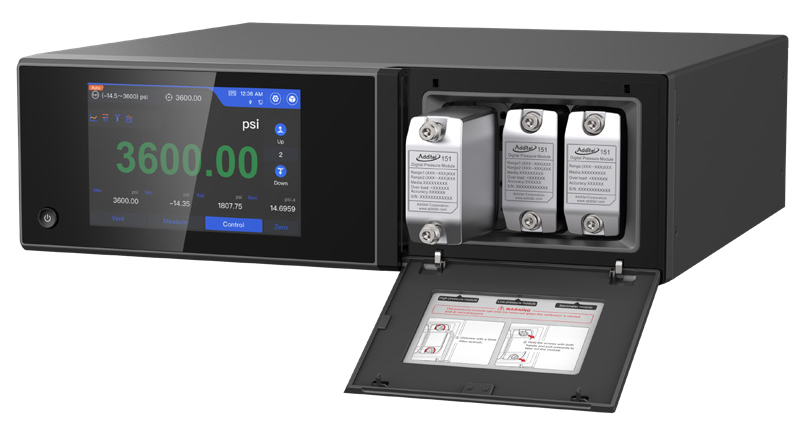

Additel 783 Controller with ADT151 Pressure Modules

Starting at $4,795.00

View Company Reviews

Manufactured

By Additel

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Operating temperature:
- 0.01%FS accuracy: 59 to 95°F
- Other accuracy: 14 to 122°F
-22 to 158°F storage temperature
Barometric options available
Relative humidity: 10 to 95%RH, non-condensing
6mm pressure connection (O-ring, 3*1.5-NBR70, for external use only)
Aluminum enclosure (for external use only)
Fully temperature-compensated accuracy
Two pressure ranges per module
Advanced temperature compensation
ISO 17025 accredited calibration and data included
1 year warranty

This product is an accessory for the following products:

Additel ADT 773 Pressure Controller

Pressure ranges from -380 to 400 inH2O.

$14,695.00

Additel ADT 783 Pressure Controller

Three selectable base units with pressure ranges from -14.35 to 3,600 psi.

Starting at $7,345.00

Additel ADT 793 Pressure Controller

Oil and water versions available, maximum pressure control range to 15,000 psi.

Starting at $31,495.00

The Additel ADT151 Digital Pressure Module fits the ADT773, ADT783, and ADT793 pressure controllers, and can be swapped out as needed to meet changing requirements and workloads. The modules cover two separate pressure ranges and come with individual calibrations for each range. This allows for each module to accurately cover a wide range of pressure workloads. Each ADT151 module is available in three different accuracy levels (0.02% FS, 0.01% FS, and 0.01% of reading).

Each ADT pressure controller can fit multiple ADT151 pressure modules, and each controller is most compatible with a specific range of modules. The following tables map each model of the ADT151 to its suggested ADT pressure controller(s).

Compound Gauge Pressure Module

Model	1st Range	2nd Range	Suggested Controller(s)
GP15K	0 to 15,000 psi	0 to 6,000 psi	ADT793
GP10K	0 to 10,000 psi	0 to 5,000 psi	ADT793
CP6K	-15 to 6,000 psi	-15 to 3,000 psi	ADT793
CP5K	-15 to 5,000 psi	-15 to 3,000 psi	ADT793
CP3.6K	-15 to 3,600 psi	-15 to 1,500 psi	ADT783-3.6K
CP3K	-15 to 3,000 psi	-15 to 1,500 psi	ADT783-3.6K
CP2K	-15 to 2,000 psi	-15 to 1,000 psi	ADT783-3.6K
CP1K	-15 to 1,000 psi	-15 to 500 psi	ADT783-1K, ADT783-3.6K
CP500	-15 to 500 psi	-15 to 300 psi	ADT783-1K, ADT783-3.6K
CP300	-15 to 300 psi	-15 to 150 psi	ADT783-1K, ADT783-3.6K
CP150	-15 to 150 psi	-15 to 60 psi	ADT783-1K
CP100	-15 to 100 psi	-15 to 50 psi	ADT783-1K
CP50	-15 to 50 psi	-15 to 30 psi	ADT783-1K
CP35	-15 to 35 psi	-15 to 15 psi	ADT783-1K
CP30	-15 to 30 psi	-15 to 15 psi	ADT783-1K
CP15	-15 to 15 psi	-10 to 10 psi	ADT783-1K

Differential Pressure Module

Model	1st Range	2nd Range	Suggested Controller(s)
DP1K	-400 to 1,000 inH2O	-400 to 400 inH2O	ADT783-D
DP800	-400 to 800 inH2O	-400 to 400 inH2O	ADT783-D
DP400	-400 to 400 inH2O	-200 to 200 inH2O	ADT783-D, ADT773
DP300	-300 to 300 inH2O	-150 to 150 inH2O	ADT783-D, ADT773
DP200	-200 to 200 inH2O	-100 to 100 inH2O	ADT783-D, ADT773
DP150	-150 to 150 inH2O	-100 to 100 inH2O	ADT783-D, ADT773
DP100	-100 to 100 inH2O	-50 to 50 inH2O	ADT783-D, ADT773
DP50	-50 to 50 inH2O	-30 to 30 inH2O	ADT783-D, ADT773
DP30	-30 to 30 inH2O	-20 to 20 inH2O	ADT783-D, ADT773
DP20	-20 to 20 inH2O	-10 to 10 inH2O	ADT783-D, ADT773
DP10	-10 to 10 inH2O	-5 to 5 inH2O	ADT773
DP5	-5 to 5 inH2O	-2 to 2 inH2O	ADT773
DP2	-2 to 2 inH2O	-1 to 1 inH2O	ADT773

High-Precision Gauge Pressure Module

Model	Gauge Pressure Range	Absolute Pressure Range	Suggested Controller(s)
GP15KM	0 to 15,000 psi	15 to 15,015 psi	ADT793
GP10KM	0 to 10,000 psi	15 to 10,015 psi	ADT793
CP6KM	-15 to 6,000 psi	0 to 6,015 psi	ADT793
CP5KM	-15 to 5,000 psi	0 to 5,015 psi	ADT793
CP3.6KM	-15 to 3,600 psi	0 to 3,615 psi	ADT793, ADT783-3.6K
CP3KM	-15 to 3,000 psi	0 to 3,015 psi	ADT793, ADT783-3.6K
CP2KM	-15 to 2,000 psi	0 to 2,015 psi	ADT783-3.6K
CP1KM	-15 to 1,000 psi	0 to 1,015 psi	ADT783-1K, ADT783-3.6K
CP500M	-15 to 500 psi	0 to 515 psi	ADT783-1K, ADT783-3.6K
CP150M	-15 to 150 psi	0 to 165 psi	ADT783-1K, ADT783-3.6K
CP100M	-15 to 100 psi	0 to 115 psi	ADT783-1K
CP50M	-15 to 50 psi	0 to 65 psi	ADT783-1K
CP30M	-15 to 30 psi	0 to 45 psi	ADT783-1K
