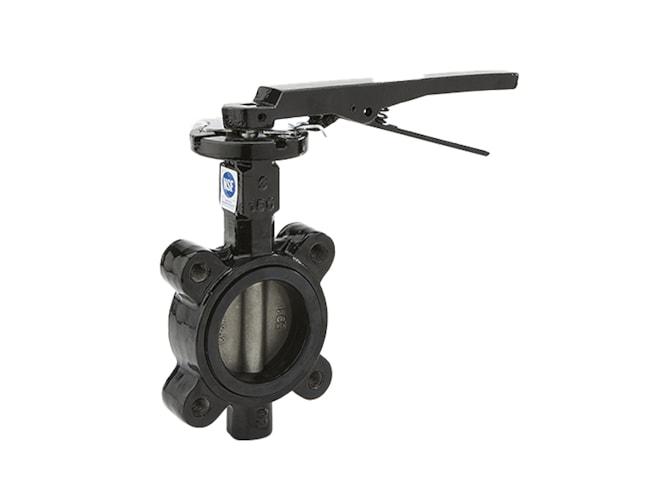

JFlow Controls 80 and 81 Series Resilient Seated Butterfly Valve

Name: JFlow Controls 80 and 81 Series Resilient Seated Butterfly Valve
Price: 247.0 USD
Availability: BackOrder

Direct mount, soft seated cartridge type butterfly valve with sizes between 2 tp 24 inches.

Starting at $247.00

View Company Reviews

Manufactured

By JFlow Controls

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Features

Pressure rating: class 125/150
Seat type: cartridge
Drilling: ANSI 125/150, JIS, 10K, PN 10/16
Complete automation capabilities
ISO 5211 mounting pad
Shells tested to 150% and seat tested to 110% of maximum working pressure
Conforms to MSS SP 61

The JFlow Controls 80/81 series butterfly valve is a resilient seated valve with a one piece body construction that complies with MSS SP 67 and ISO 5752. The mounting pad with a square or key type stem shaft is ISO 5211 compliant and permits direct mount actuation for both manual (lever and gear), pneumatic, and electric operations. The high strength, two-piece stem eliminates the need for taper pins or disc screws.

All disc castings for these butterfly valves are spherically machines and polished for extended seat life and bubble tight shut off. The cartridge design of the seats allow for easy change without special tools. There are reduced disc options for lower pressure applications. The teflon stem bushing allows for an extended life of the valve, as well as lower operator torque for manual operation and shaft support.
