GEO Calibration Hygro-Mini X Portable Humidity Generator and Calibrator

Humidity generator and calibrator with temperature range of 50 to 122°F (10 to 50°C) and RH range of 5 to 85% at 74°F (23°C).

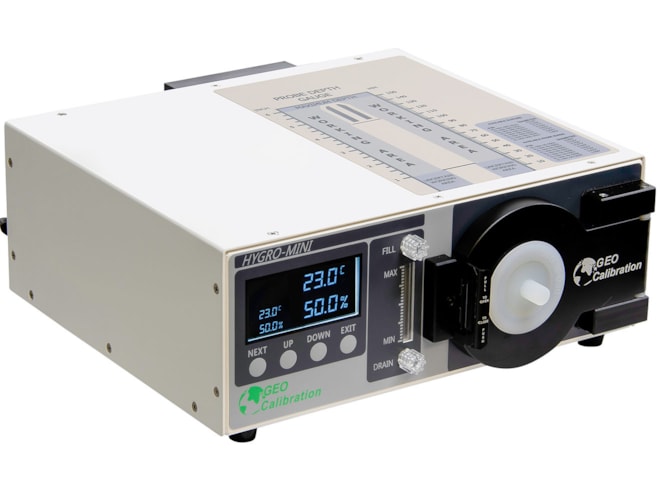

GEO Calibration Hygro-Mini X Portable Humidity Generator and Calibrator - Front
GEO Calibration Hygro-Mini X Portable Humidity Generator and Calibrator - Rear

$17,160.00

View Company Reviews

Part Number

01-022-00-0000

Manufactured

By GEO Calibration

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

10 to 50°C temperature range at 23°C
5 to 85% RH humidity range at 23°C
±0.1°C temperature accuracy
±1.0% relative humidity accuracy
PID controller
0.20°C temperature uniformity
0.40% RH uniformity
0.10°C temperature stability
0.15% RH stability
Ramp/soak rate of change:
- Temperature high to low, 1.00°C per minute
- Temperature low to high, 1.00°C per minute
- Humidity high to low, 3.00% RH per minute
- Humidity low to high, 3.00% RH per minute
Five hours battery life

The GEO Calibration Hygro-Mini X portable humidity generator and calibrator is the smallest unit available with variable control for both humidity and temperature. The Hygro-Mini X is battery powered and designed for field calibration. Any programmed set-point can be reached within three minutes, and the orientation does not affect accuracy.

The Hygro-Mini X is space efficient, lightweight, and can be used in hard-to-reach spots or for low volume probe facilities. It is ideal for mobile applications.
