GEO Calibration 2000 SP Standard Expansion Chamber
8L carbon fiber expansion chamber with ±5°C ambient temperature and 20 to 80% RH range for the 2000 SP humidity generator.
$4,000.00
Part Number
- 01-054-00-0000
Manufactured
Includes
Availability
Overview
Features
- ±5°C ambient temperature
- 20 to 80% RH humidity range
- ±0.50°C temperature accuracy
- ±3.00% RH accuracy at 23°C
- 8-liter effective working volume
- 0.50°C temperature uniformity
- 3.00% RH uniformity at 23°C
- 0.30°C temperature stability
- 1.00% RH stability at 23°C
- Ramp/soak rate of change:
- Temperature high to low, 1.50°C per minute
- Temperature low to high, 5.00°C per minute
- Humidity high to low, 1.00% RH per minute
- Humidity low to high, 1.00% RH per minute
This product is an accessory for the following products:
Description

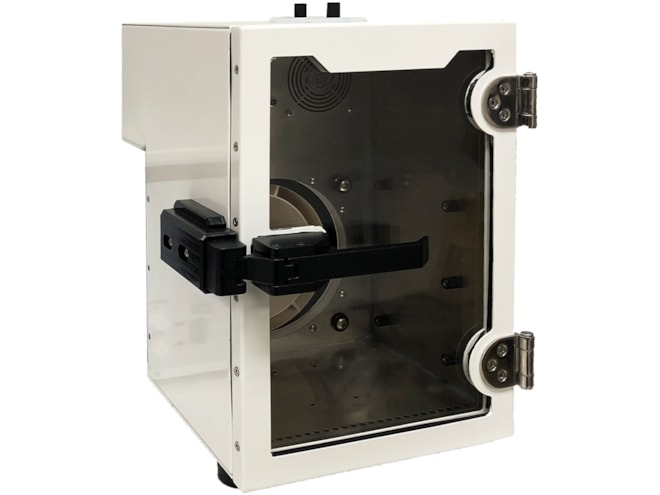

GEO Calibration 2000 SP Standard Expansion Chamber generates and maintains a controlled humidity and temperature environment for testing or calibrating humidity and temperature sensors, also known as hygrometers. The humidity calibration range is 20 to 80%, while the temperature range is +/-5°C from room temperature. The expansion chamber can calibrate many hygrometer types, including probes, data loggers, chart recorders, and other assorted hygrometers.
