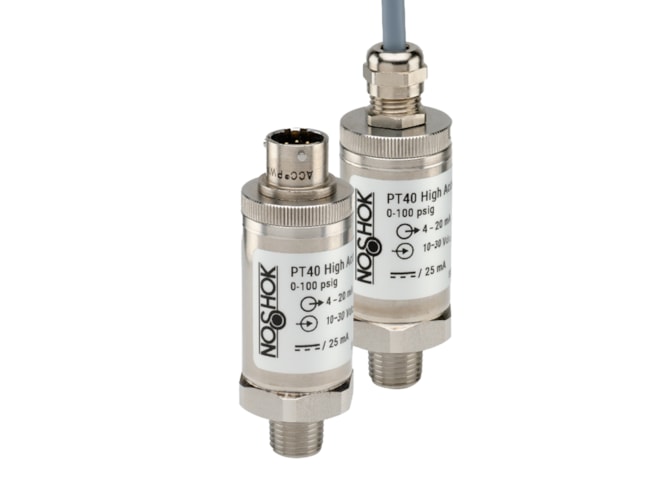

NOSHOK PT40 Series Pressure Transmitter

Name: NOSHOK PT40 Series Pressure Transmitter
Price: 609.16 USD
Availability: InStock

High accuracy fixed range pressure transmitter with gauge, compound, absolute and vacuum ranges available.

Starting at $609.16

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

±0.25% or ±0.125% accuracy options available
Media temperature range -22 to 212°F (-30 to 100 °C)
Adjustment: ±10% full scale
Gauge ranges from vacuum to 2 to 15,000psi
Absolute ranges from 15 to 300psi
Current and voltage outputs available
316 SS housing material, process connection and measuring element
- Measuring element constructed with 17-4PH SS for 500psi and greater
RoHS compliant
CE compliant for RFI, EMI and ESD protection
ROHS compliant
IP65/67

The NOSHOK PT40 Series Pressure Transmitter is a highly accurate, fixed range sensor for use in a wide range of industrial applications with a response time of less than 1ms, for real time data generation where time and consistency counts. The standard model provides ±0.25% accuracy with the option of ±0.125% for more exact readings. In addition to improved accuracy the PT40 series offers expanded ranges from vacuum to to standard gauge pressures of 2 to 15000psi.

With a shock resistant design tested up to 1000g's per IEC standards, and a life span that includes over 100 million load cycles, the PT40 Series is built to be durable and low maintenance while providing improved accuracy across the board. Part of a new line replacing the NOSHOK 100, 200, 300 and 615 Series transmitters, the PT40 Series is cutting edge with an expanded selection of pressure connections and electrical connections to suit any application. With reverse polarity, overvoltage and short circuit protections, burst pressure guaranteed 3-5 times full scale and proof pressure guaranteed 1.5-3 times full scale, the PT40 Series is built to last and provide accurate reads for every use case.

All NOSHOK PT Series Transmitters come with a three year warranty.

Applications

Hydraulics & pneumatics
Laboratory & test equipment
Power generation
Automation
Mobile equipment
General industrial

Spec Sheets

Manuals

NOSHOK PT40 Series Pressure Transmitter Manual (238 KB)

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Price	Available
PT40-10000psig-1-2-2-16 Show Configuration	$507.62	32 in stock
PT40-10000psig-1-2-2-16-ST8 Show Configuration	$522.32	32 in stock
PT40-10000psig-1-2-2-2 Show Configuration	$521.96	32 in stock
PT40-10000psig-1-2-2-2-ST8 Show Configuration	$536.66	32 in stock
PT40-10000psig-1-2-2-25 Show Configuration	$505.70	32 in stock
PT40-10000psig-1-2-2-25-ST8 Show Configuration	$520.40	32 in stock
PT40-10000psig-1-2-2-3 Show Configuration	$524.40	32 in stock
PT40-10000psig-1-2-2-3-ST8 Show Configuration	$539.10	32 in stock
PT40-10000psig-1-2-2-36 Show Configuration	$510.10	32 in stock
PT40-10000psig-1-2-2-36-ST8 Show Configuration	$524.80	32 in stock
PT40-10000psig-1-2-2-70 Show Configuration	$489.42	32 in stock
PT40-10000psig-1-2-2-70-ST8 Show Configuration	$504.12	32 in stock
PT40-10000psig-2-2-2-16 Show Configuration	$564.45	32 in stock
PT40-10000psig-2-2-2-16-ST8 Show Configuration	$579.15	32 in stock
PT40-10000psig-2-2-2-2 Show Configuration	$578.79	32 in stock
PT40-10000psig-2-2-2-25 Show Configuration	$562.53	32 in stock
PT40-10000psig-1-1-2-16 Show Configuration	$507.62	13 in stock
PT40-10000psig-1-1-2-16-ST8 Show Configuration	$522.32	13 in stock
PT40-10000psig-1-1-2-2 Show Configuration	$521.96	13 in stock
PT40-10000psig-1-1-2-2-ST8 Show Configuration	$536.66	13 in stock
PT40-10000psig-1-1-2-25 Show Configuration	$505.70	13 in stock
PT40-10000psig-1-1-2-25-ST8 Show Configuration	$520.40	13 in stock
PT40-10000psig-1-1-2-3 Show Configuration	$524.40	13 in stock
PT40-10000psig-1-1-2-3-ST8 Show Configuration	$539.10	13 in stock
PT40-10000psig-1-1-2-36 Show Configuration	$510.10	13 in stock
PT40-10000psig-1-1-2-36-ST8 Show Configuration	$524.80	13 in stock
PT40-10000psig-1-1-2-70 Show Configuration	$489.42	13 in stock
PT40-10000psig-1-1-2-70-ST8 Show Configuration	$504.12	13 in stock
PT40-10000psig-2-1-2-16 Show Configuration	$564.45	13 in stock
PT40-10000psig-2-1-2-16-ST8 Show Configuration	$579.15	13 in stock
PT40-10000psig-2-1-2-2 Show Configuration	$578.79	13 in stock
PT40-10000psig-2-1-2-2-ST8 Show Configuration	$593.49	13 in stock
PT40-10000psig-2-1-2-25 Show Configuration	$562.53	13 in stock
PT40-10000psig-2-1-2-25-ST8 Show Configuration	$577.23	13 in stock
PT40-10000psig-2-1-2-3 Show Configuration	$581.23	13 in stock
PT40-10000psig-2-1-2-3-ST8 Show Configuration	$595.93	13 in stock
PT40-10000psig-2-1-2-36 Show Configuration	$566.93	13 in stock
PT40-10000psig-2-1-2-36-ST8 Show Configuration	$581.63	13 in stock
PT40-10000psig-2-1-2-70 Show Configuration	$546.25	13 in stock
PT40-10000psig-2-1-2-70-ST8 Show Configuration	$560.95	13 in stock
PT40-10000psig-1-5-2-16 Show Configuration	$507.62	6 in stock
PT40-10000psig-1-5-2-16-ST8 Show Configuration	$522.32	6 in stock
PT40-10000psig-1-5-2-2 Show Configuration	$521.96	6 in stock
PT40-10000psig-1-5-2-2-ST8 Show Configuration	$536.66	6 in stock
PT40-10000psig-1-5-2-25 Show Configuration	$505.70	6 in stock
PT40-10000psig-1-5-2-25-ST8 Show Configuration	$520.40	6 in stock
PT40-10000psig-1-5-2-3 Show Configuration	$524.40	6 in stock
PT40-10000psig-1-5-2-3-ST8 Show Configuration	$539.10	6 in stock
PT40-10000psig-1-5-2-36 Show Configuration	$510.10	6 in stock
PT40-10000psig-1-5-2-36-ST8 Show Configuration	$524.80	6 in stock
PT40-10000psig-1-5-2-70 Show Configuration	$489.42	6 in stock
PT40-10000psig-1-5-2-70-ST8 Show Configuration	$504.12	6 in stock
PT40-10000psig-1-5-8-16 Show Configuration	$507.62	4 in stock
PT40-10000psig-1-5-8-16-ST8 Show Configuration	$522.32	4 in stock
PT40-10000psig-1-5-8-2 Show Configuration	$521.96	4 in stock
PT40-10000psig-1-5-8-2-ST8 Show Configuration	$536.66	4 in stock
PT40-10000psig-1-5-8-25 Show Configuration	$505.70	4 in stock
PT40-10000psig-1-5-8-25-ST8 Show Configuration	$520.40	4 in stock
PT40-10000psig-1-5-8-3 Show Configuration	$524.40	4 in stock
PT40-10000psig-1-5-8-3-ST8 Show Configuration	$539.10	4 in stock
PT40-10000psig-1-5-8-36 Show Configuration	$510.10	4 in stock
PT40-10000psig-1-5-8-36-ST8 Show Configuration	$524.80	4 in stock
PT40-10000psig-1-5-8-70 Show Configuration	$489.42	4 in stock
PT40-10000psig-1-5-8-70-ST8 Show Configuration	$504.12	4 in stock
PT40-10000psig-1-2-8-16 Show Configuration	$507.62	3 in stock
PT40-10000psig-1-2-8-16-ST8 Show Configuration	$522.32	3 in stock
PT40-10000psig-1-2-8-2 Show Configuration	$521.96	3 in stock
PT40-10000psig-1-2-8-2-ST8 Show Configuration	$536.66	3 in stock
PT40-10000psig-1-2-8-25 Show Configuration	$505.70	3 in stock
PT40-10000psig-1-2-8-25-ST8 Show Configuration	$520.40	3 in stock
PT40-10000psig-1-2-8-3 Show Configuration	$524.40	3 in stock
PT40-10000psig-1-2-8-3-ST8 Show Configuration	$539.10	3 in stock
PT40-10000psig-1-2-8-36 Show Configuration	$510.10	3 in stock
PT40-10000psig-1-2-8-36-ST8 Show Configuration	$524.80	3 in stock
PT40-10000psig-1-2-8-70 Show Configuration	$489.42	3 in stock
PT40-10000psig-1-2-8-70-ST8 Show Configuration	$504.12	3 in stock
PT40-10000psig-1-1-8-16 Show Configuration	$507.62	2 in stock
PT40-10000psig-1-1-8-16-ST8 Show Configuration	$522.32	2 in stock
PT40-10000psig-1-1-8-2 Show Configuration	$521.96	2 in stock
PT40-10000psig-1-1-8-2-ST8 Show Configuration	$536.66	2 in stock
PT40-10000psig-1-1-8-25 Show Configuration	$505.70	2 in stock
PT40-10000psig-1-1-8-25-ST8 Show Configuration	$520.40	2 in stock
PT40-10000psig-1-1-8-3 Show Configuration	$524.40	2 in stock
PT40-10000psig-1-1-8-3-ST8 Show Configuration	$539.10	2 in stock
PT40-10000psig-1-1-8-36 Show Configuration	$510.10	2 in stock
PT40-10000psig-1-1-8-36-ST8 Show Configuration	$524.80	2 in stock
PT40-10000psig-1-1-8-70 Show Configuration	$489.42	2 in stock
PT40-10000psig-1-1-8-70-ST8 Show Configuration	$504.12	2 in stock
PT40-10000psig-2-1-8-16 Show Configuration	$564.45	2 in stock
PT40-10000psig-2-1-8-16-ST8 Show Configuration	$579.15	2 in stock
PT40-10000psig-2-1-8-2 Show Configuration	$578.79	2 in stock
PT40-10000psig-2-1-8-2-ST8 Show Configuration	$593.49	2 in stock
PT40-10000psig-2-1-8-25 Show Configuration	$562.53	2 in stock
PT40-10000psig-2-1-8-25-ST8 Show Configuration	$577.23	2 in stock
PT40-10000psig-2-1-8-3 Show Configuration	$581.23	2 in stock
PT40-10000psig-2-1-8-3-ST8 Show Configuration	$595.93	2 in stock
PT40-10000psig-2-1-8-36 Show Configuration	$566.93	2 in stock
PT40-10000psig-2-1-8-36-ST8 Show Configuration	$581.63	2 in stock
PT40-10000psig-2-1-8-70 Show Configuration	$546.25	2 in stock
PT40-10000psig-2-1-8-70-ST8 Show Configuration	$560.95	2 in stock

The manufacturer has over 100 different models of this product in stock. View All Manufacturer Stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
