NOSHOK PTI30 High Accuracy Intelligent Pressure Transmitter

Compact, high accuracy pressure transmitter for use in general industrial applications, with user-adjustable ranges from vacuum to 1450psig.

NOSHOK PTI30 Series Intelligent Pressure Transmitter - NPT male connection

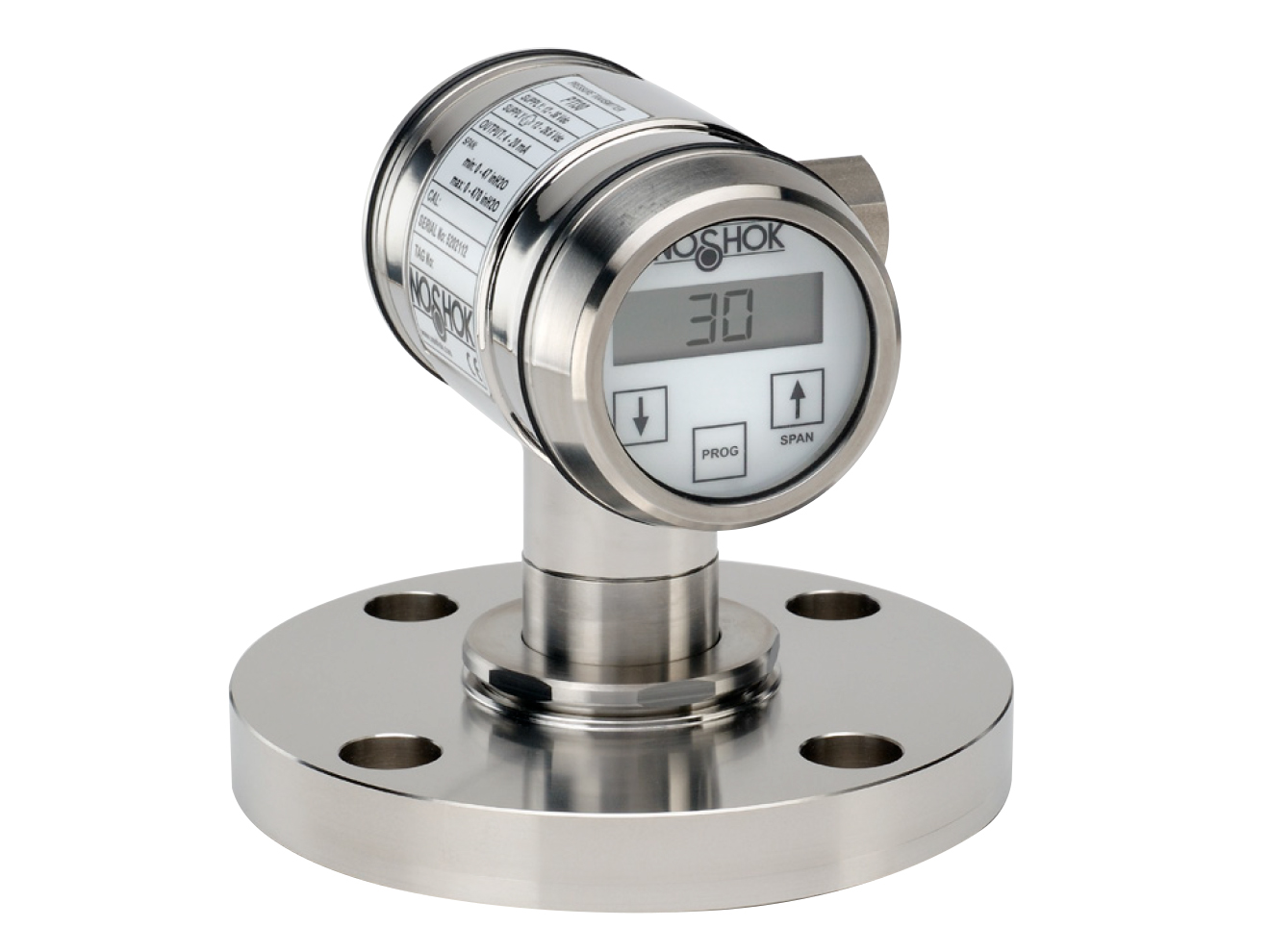

NOSHOK PTI20 Series Intelligent Pressure Transmitter - ANSI 150# Flange connection

Starting at $1,211.79

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

Pressure ranges: 5 to 1,450psig (adjustable from vacuum to full scale)
Stability: <0.1% per year
Accuracy: ±0.1% of adjusted span (10:1 turn down)
Response time: <250ms
Service life: 10+ years
Temperature ranges:
- media -4 to 176°F (-20 to 80°C)
- ambient -4 to 158°F (-20 to 70°C)
- flange -4 to 212°F (-20 to 100°C)
Output: 4 to 20 mA 2-wire (HART enabled option available)
Power requirement: 12 to 36VDC
Active temperature compensation
Housing/Connection/Measuring Element Material: Stainless Steel
Environmental rating: IP66
RFI, EMI and ESD protections
CE compliant
3-year Warranty

The NOSHOK PTI30 Series Intelligent Pressure Transmitter utilizes a piezoresistive silicon sensor for use in general industrial applications where improved accuracy and temperature compensation is required. When the PTI30's sensor element is put under pressure, it creates a deflection in the silicon substrate and bridge network. This generates a value that is converted into a pressure measurement within 0.1%, providing consistent, high accuracy readings in less than 250ms of change occurring.

The PTI30 features a compact but durable design, with a stainless steel flush diaphragm that reduces the fill fluid required, as well as the potential for damage when utilized in harsh environmental conditions. The design features easy-to-implement adjustments to all available ranges via a streamlined 3 button system on the PTI30's display, or through the optional HART output.

All NOSHOK PTI Series Transmitters come with a three year warranty.
