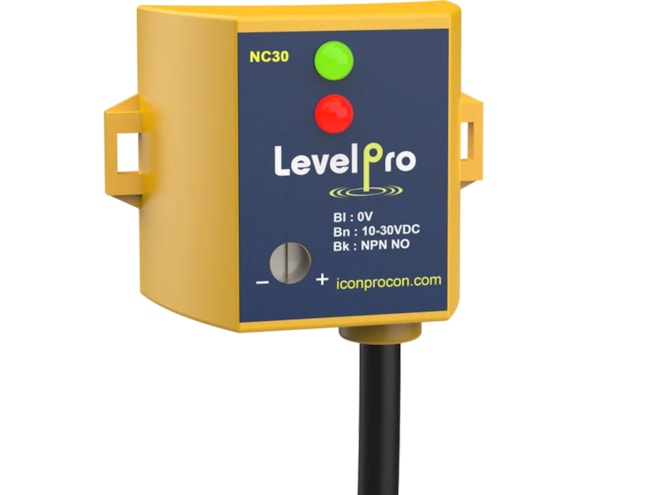

ICON LevelPro NC30 Series Non-Contact Liquid Level and Flow Switch
Non-contact liquid level and flow switch to sense conductive and non-conductive liquids.
Starting at $399.00
Starting at
$359.10
Manufactured
Includes
Availability
Overview
Features
- Non-contact
- Detection through plastic or fiberglass
- Measure up to 2" pipe diameter
- 6-30VDC
- Supply current:
- Pulse Output Type: max 0.6, 7mA (OFF and ON state)
- S-Relay Output Type: max 0.6mA (OFF state)
- Switched current (min/max)
- Pulse Output Type: 100mA
- S-Relay Output Type: 3.3mA, 40mA
- Remanent voltage- ON state
- Pulse Output Type: 1.8V
- S-Relay Output Type: 6.0V
- Max 1Hz switching frequency
- PP housing material
- PVC cable connection
- NEMA 4X, IP67
Description
The ICON LevelPro NC30 Series Non-Contact Liquid Level and Flow Switch has been designed using high frequency technology to sense the presence of liquid, both conductive and non conductive. Suitable for non-metallic tubing, tanks, drums, and pipes.
