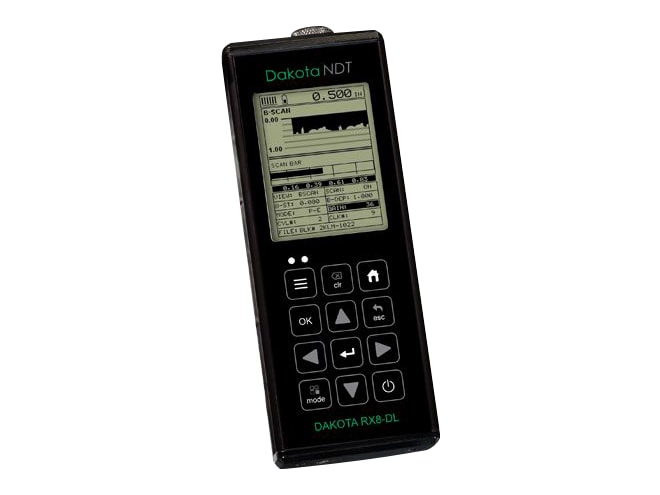

Dakota NDT RX8-DL Sonic Tester

Name: Dakota NDT RX8-DL Sonic Tester
Price: 2100.0 USD
Availability: BackOrder

Advanced ultrasonic thickness tester designed to meet the needs of the automotive and racing industries.

$2,100.00

View Company Reviews

Part Number

RX8-DL

Manufactured

By Dakota NDT

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

Measurement modes:
- Pulse-Echo (flaws, pits, corrosion): 0.025 to 36in (0.63 to 914.4mm)
- Echo-Echo (thru-paint and coatings): 0.100 to 4in (2.54 to 101.6mm)
Pulser: 150 volt square wave
Receiver: manual or AGC gain control with 50dB range, depending on mode
Timing: precision TCXO with single shot 100MHz 8-bit, ultra low power digitizer
Resolution: +/-0.001in (0.01mm)
Velocity range: 0.012 to 0.73 in/μs (310 to 18,542 m/sec)
Display modes:
- Large digits (standard thickness view)
- B-Scan (time-based cross section view)
- Scan bar (speed 10Hz)
- Bar graph (stability of measurement)
High speed scan: 10 to 200 readings per second
Dual element transducer (1 to 10MHz)
Automatic dual path error correction
Factory calibration traceable to NIST and MIL-STD-45662A
2-year limited warranty

What's in the Box

Standard 1/4" delay line transducer (2 delay tips – 3/8” and 1/2” L) and cable
Couplant
Manual
Certificate of Calibration
AA batteries
Plastic carrying case

The Dakota NDT RX8-DL sonic tester is an advanced ultrasonic thickness tester designed for the automotive and racing industries. It is most commonly used to measure the thickness of cylinder walls, body panels, chassis tubing, roll cages, head ports, and windshields. The RX8-DL includes a time-based B-Scan feature that displays a cross-section of the opposite surface, allowing engine builders the ability to see the profile/contour of the back surface while scanning cylinders.

The RX8-DL features two measurement modes. The Pulse-Echo mode is used for flaw, pit, and corrosion detection. The Echo-Echo mode is used to measure chassis tubing with or without paint and coatings and includes built-in automatic gain control with a 50dB range and selectable gain options. The tester also features precision temperature controlled crystal oscillator (TCXO) timing with a single shot 100MHz 8-bit ultra-low power digitizer.
