Dakota NDT RX8-DL and R9 Series Dual Element Transducers
Dual element transducers for Dakota NDT RX8-DL and R9 Series thickness gauges.
Overview
Features
- Designed for the racing industry
- 5.0 or 10.0 MHz
- 3/16, 1/4, 1/2" diameters
- 4-foot cable
- Potted connectors
This product is an accessory for the following products:
Description

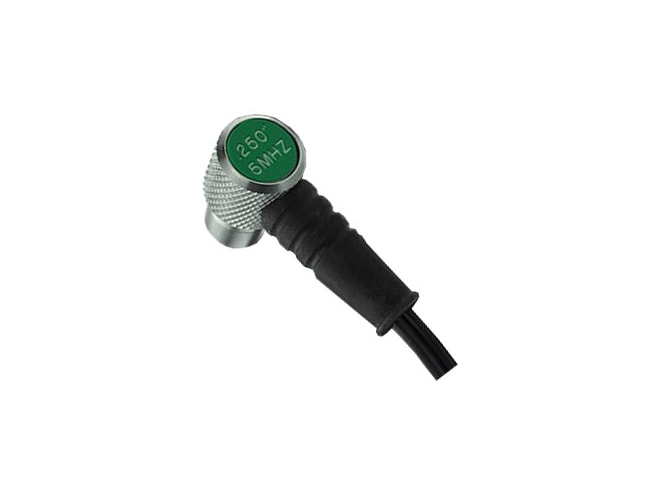

Dakota NDT PR Series dual element transducers are for use with their RX8-DL and R9 ultrasonic thickness gauges. These transducers are optimized for the racing industry and include a 4' cable and potted connectors.
Dakota NDT dual element transducers are available in 5.0 or 10 MHz frequencies. Each frequency range is best suited for different types of material:
5.0 MHz Transducer:
Materials: Cast Iron, Steel, Glass, Thin Plastics
Applications: Cylinders , Heads, Decks, Tubing, Body panels, Windshields
Covers majority of all iron automotive applications
10.0 MHz Transducer:
Matrials: Cast Iron, Steel, Glass, Thin Plastics
Applications: Cylinders , Heads, Decks, Tubing, Body panels, Windshields
Covers majority of all aluminum automotive applications
