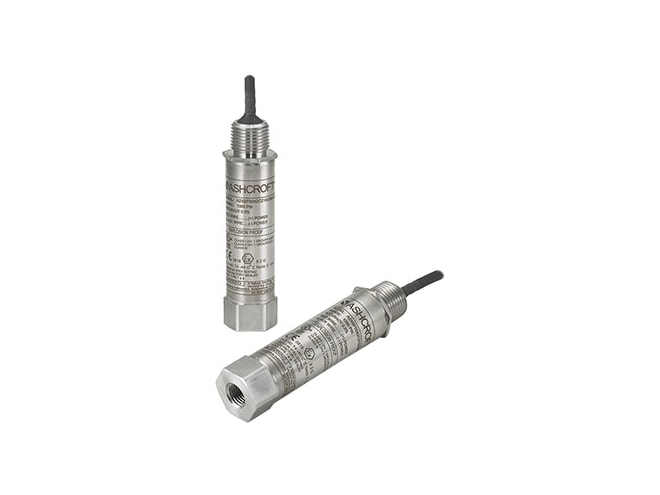

Ashcroft A2X Explosion/Flame Proof Pressure Transmitter

Name: Ashcroft A2X Explosion/Flame Proof Pressure Transmitter
Price: 822.55 USD
Availability: BackOrder

Pressure transmitter designed for areas requiring explosion/flame proof approvals.

Starting at $822.55

Effective March 12th, 2025 Ashcroft has added a 4% surcharge to this product. The surcharge will appear as a separate line item on the order

View Company Reviewsby Trustpilot

Manufactured

By Ashcroft

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 6-8 weeks

Product Manual Product Specs

Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Trustpilot

Overview

Features

Choice of 0.25, 0.50 or 1.0% accuracy
Pressure ranges from -15 psi through 10,000 psi
-20 to 85°C temperature range
CE mark is standard
17-4 pH and 316L SS diaphragm materials available
Six output signals to choose from
Optional absolute pressure ranges available
Available externally adjustable zero and span access
FM, cUL and ATEX listed

Description

The Ashcroft A2X explosion/flame proof pressure transmitter is ideal for a broad spectrum of pressure sensing requirements where explosion/flame proof hazardous location ratings are required. Typical applications include: oil field equipment, upstream oil and gas production, natural gas compression and transfer control, and alternative energy projects.

Ashcroft A2X explosion/flame proof pressure transmitters are designed and manufactured to provide the user with accurate, reliable, and stable output data. This is accomplished through the use of an on board microprocessor, that is programmed during a unique digital compensation process, to provide extremely linear and precise performance over the entire specified pressure and temperature range. The A2X explosion/flame-proof pressure transmitter is FM, cUL and ATEX listed.

The Ashcroft A2X explosion/flame proof pressure transmitter is available in pressure ranges from -15 to 10,000 psi and 3 different levels of accuracy: 0.25%, 0.50% or 1.0% to suit your application needs. A CE mark is standard and the Ashcroft A2X features 316L stainless steel wetted materials, a 304 stainless steel case, six different output signals to choose from, and absolute pressure ranges are available.

Documents

Spec Sheets

Ashcroft A2X Explosion/Flame Proof Pressure Transmitter Datasheet PDF (346 KB)

Manuals

Ashcroft A2X Explosion/Flame Proof Pressure Transmitter Instruction Manual PDF (257 KB)
