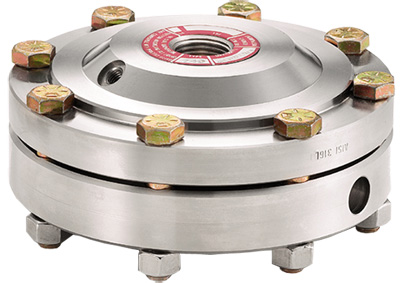

Ashcroft Type 700 Series Diaphragm Seals

For pressure instruments ranging from 30 inches H2O to 750 psi with large displacement actuators.

Ashcroft Type 702 Diaphragm Seal
Ashcroft Type 741 Diaphragm Seal

Starting at $628.29

Effective April 28th, 2025 Ashcroft has added a 5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviewsby Trustpilot

Manufactured

By Ashcroft

Includes

FREE Ground Shipping on orders of $1,000 or more (some models excluded)
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Trustpilot

Overview

Features

For pressure instruments from 30in H2O to 750 psi
Used in instruments with large displacement actuators
Diaphragm electron beam welded to isolator body
Furnished with fill/bleed connection
Process connection sizes 1/4 to 3 inches
Threaded or raised face process connection types
Glycerin, silicone, halocarbon, syltherm fill fluid options
316 stainless steel (other options available)

In a rush? Ashcroft Gold Service guarantees shipment within 3 to 5 days. Call us now at 1-800-884-4967 for additional information.

This product is an accessory for the following products:

Ashcroft 1009 Analog Pressure Gauges

Stainless steel analog pressure gauge for pressures up to 30,000 psi with ±1% full scale accuracy.

Some Models in Stock

Starting at $109.11

Ashcroft 1036 In-Line Sanitary Gauge

Designed specifically for the pharmaceutical, biotechnology & food processing markets.

Starting at $463.01

Ashcroft 1082 Test Gauge

Test gauge with externally adjustable dial.

Starting at $378.37

Ashcroft 1109 Pressure Gauge

Solid front case design with full blowout back.

Starting at $354.19

Ashcroft 1125 / 1125A Differential Pressure Gauges

4.5 and 6 inch dial sizes, bronze Bourdon tube & socket.

Starting at $1,257.61

Ashcroft 1127 / 1128 Differential Pressure Gauges

316 stainless steel wetted parts, 4.5 or 6 inch dial sizes.

Starting at $1,360.46

Ashcroft 1130 Series Differential Pressure Gauges

Analog differential pressure gauges constructed with a stainless steel case with a choice of aluminum, brass, or stainless steel body.

Starting at $194.35

Ashcroft 1180 Series Analog Low Pressure Gauge

Bellows gauge for low pressure applications available in 4.5 and 6in dial sizes .

Starting at $559.02

Ashcroft 1259 Analog Pressure Gauges

Analog process gauge features 0.5% accuracy & ranges up to 20,000 psi.

Some Models in Stock

Starting at $183.49

Ashcroft 1377 Duragauge Pressure Gauge

Duragauge pressure gauge designed for flush mounting.

Starting at $243.25

Ashcroft 1379 Duragauge Pressure Gauge

Duragauge pressure gauge with solid-front aluminum case.

Starting at $230.42

Ashcroft 1490 Analog Low Pressure Gauge

Analog pressure gauge with diaphragm sensing element for pressures below 15 psi.

Starting at $59.74

Ashcroft 2030 Series Digital Sanitary Gauge

One multi-function gauge that acts as a mechanical pressure gauge, transducer & switch.

Starting at $1,032.70

Ashcroft 2074, 2174, and 2274 Digital Industrial Gauges

Multi-functional digital gauge with optional 4-20mA output and 1 or 2 SPDT switches.

Starting at $506.38

Ashcroft 2089, 2086 and 2084 Precision Digital Test Gauges

Precision digital test gauges with industry leading accuracy.

Some Models in Stock

Starting at $1,065.52

Ashcroft 2462 Duragauge Pressure Gauge

General purpose gauge with 4.5in dial that looks like a 6in dial when viewed from the front .

Starting at $204.83

Ashcroft 5503 Differential Pressure Gauge

1450 psi static pressure standard with optional static pressure to 3625 psi.

Starting at $4,360.55

Ashcroft A2 Heavy Industrial Pressure Transmitter

Pressure transmitter with up to 0.25% accuracy designed for heavy industrial applications .

Starting at $643.61

Ashcroft A2X Explosion/Flame Proof Pressure Transmitter

Pressure transmitter designed for areas requiring explosion/flame proof approvals.

Starting at $822.55

Ashcroft A4 Intrinsically Safe / Non-Incendive Pressure Transmitter

Pressure transmitter designed for areas requiring intrinsically safe and non-incendive approvals.

Starting at $631.13

Ashcroft A4A Precision Dial Pressure Gauge

Ranges from 15 to 100,000 psi and ±0.1% full-scale accuracy.

Starting at $2,371.63

Ashcroft CXLdp Series Differential Pressure Transmitters

Low-pressure transmitters capable of DIN rail or standard panel mounting.

Starting at $241.82

Ashcroft DG25 Digital Pressure Gauge

0.5% accuracy, bar graph display, vacuum & compound ranges from -14.7 to 25,000 psi.

Starting at $352.44

Ashcroft F5509 / F6509 Differential Pressure Gauge

316L Stainless steel case and wetted parts, ±1.6% accuracy, high static pressure limits.

Starting at $2,243.78

Ashcroft GC51 Rangeable Pressure Transmitter

Up to 8 times smaller than a conventional process transmitter with NEMA 4X IP65 aluminum housing.

Starting at $874.15

Ashcroft GC51 Rangeable Pressure Transmitter

Up to 8 times smaller than a conventional process transmitter with NEMA 4X IP65 aluminum housing.

Starting at $874.15

Ashcroft GC52 Differential Pressure Transmitter

Rangeable wet/wet transmitter for unidirectional & bidirectional pressure measurement.

Starting at $1,314.91

Ashcroft GC55 Wet/Wet Differential Pressure Transducer

Two-sensor design well suited for high differential pressure ranges.

Starting at $727.24

Ashcroft IXLdp Series Differential Pressure Transmitters

Ultra-low differential pressure transmitter with 0.25% accuracy & high overpressure protection.

Starting at $980.05

Ashcroft K1 Industrial Pressure Transducer

Versatile pressure transducer with polysilicon thin film technology & pressure ranges from vacuum to 20,000 psi.

Starting at $458.59

Ashcroft Type 1032 Sanitary Pressure Gauge

Sanitary pressure gauges that can be autoclaved or sterilized in place to temperatures of 300°F .

Starting at $493.59

Ashcroft Type 1084 Pocket Test Gauge

Stainless steel 3in pocket test gauge with ±0.5% accuracy.

Starting at $229.02

Ashcroft XLdp Series Differential Pressure Transmitters

Ultra-low differential pressure transmitter with 0.25% accuracy, high overpressure protection & NEMA 2 stainless steel construction.

Starting at $732.55

Ashcroft D1005PS Digital Gauge

General purpose digital gauge ±0.5% full scale accuracy.

RETIRED

Description

Ashcroft Type 700 Series diaphragm seals are designed for use in instruments with large displacement actuators and for instruments ranging from 30 inches H2O to 750 psi. The Type 700 Series is available in many material combinations including 316SS, tantalum, titanium, hastelloy B, hastelloy C-276, and monel. The diaphragm electron beam comes welded to the isolator body. This unit is used for applications requiring an impermeable metallic diaphragm.
