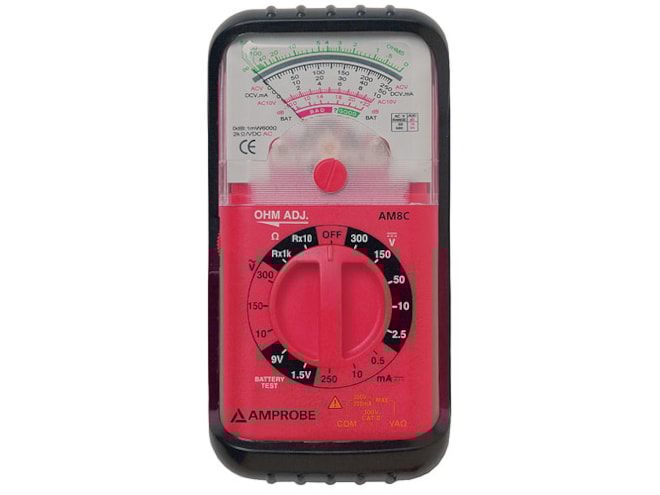

Amprobe AM8C Analog Multimeter

Mini analog multimeter for the home, car, or workshop.

Retired products cannot be ordered

The Amprobe AM-220 Digital Multimeter is the recommended replacement

View Company Reviews

Part Number

AM8C

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

DC & AC voltage to 300 V
DC current to 250 mA
Resistance to 500 kΩ
Analog needle display with mirror scale
High sensitivity taut band movement
5 functions / 15 ranges
Compact size for portability
Special ranges to test household batteries
Ohms zero adjust
CAT II 300 V safety rating

The Amprobe AM8C multimeter is a compact analog multimeter perfect for the home, car, or workshop. The quick responding AM8C has a small, compact size making it easy to take anywhere.

The Amprobe AM8C multimeter measures AC & DC voltage to 300 V, DC current to 250 mA, and resistance to 500 kΩ. Featuring high sensitivity and taut band movement, this Amprobe multimeter also includes special ranges to test household batteries, ohms zero adjustment, and a fused input.

The Amprobe AM8C multimeter ships complete with:

Holster
Battery
Attached test leads
Manual

Amprobe AM8C Mini Analog Multimeter Electrical Specifications

Function	Range	Accuracy
Voltage
DC Voltage	2.5 V, 10 V, 50 V, 150 V, 300 V	All ranges ±5 %
AC Voltage	(50 Hz to 60 Hz)50 V, 150 V, 300 V	All ranges ±5 % accuracies apply to sine wave inputs only
Input Impedance	2 kΩ/V
Current
DC Current	0.5 mA, 10 mA, 250 mA	All ranges ±5 %
Resistance
	5 kΩ, 500 kΩ	All ranges ±5 %
Battery Test
Battery voltages	1.5 V, 9 V	±10% of good/bad line
Overload Protection
DC Current	200 mA/250 V ceramic fuse
Voltage, Resistance	300 V
