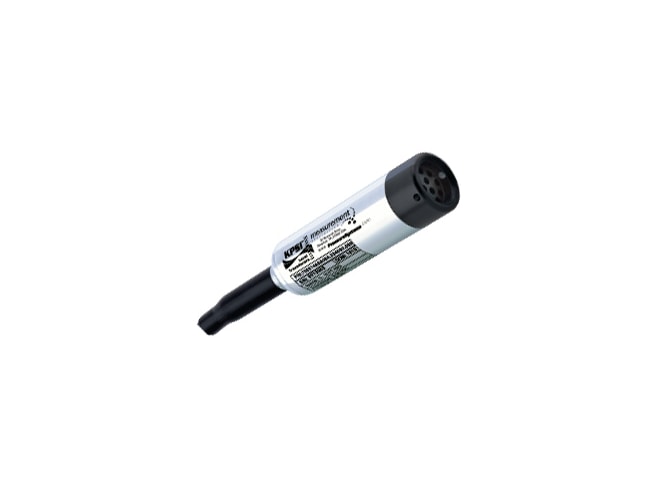

KPSI 735 Level Transducer

Submersible up to 700 feet with UL and CUL approvals, and FM intrinsic safety approval standard available for most versions.

Retired products cannot be ordered

View Company Reviews

Part Number

735S14B0A010.000000.000B10400A

Manufactured

By KPSI Level Transducers

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs (2 Files)

Features

Custom level ranges: up to 700ftH2O (210m)
UL and CUL safety approvals
FM intrinsic safety approval (except for Output "4-20 mA, temp option")
Custom polyurethane or ETFE cable lengths
Accuracy: ±0.05%FSO
Resolution: ±0.0001%FS
Multiple analog outputs
Welded 316SS or titanium
Operating temp: -4 to 140°F (w/polyurethane cable)
Two year warranty
IP68

The KPSI 735 Level Transducer includes UL and CUL safety approvals. The FM intrinsic safety approval standard is included for all versions except those with output 4-20 mA, temperature option. The transducers are specifically designed to meet the rigorous environments encountered in liquid level measurement and control. They can be configured to perform to specifications under most adverse, reactive conditions.

Applications include:

Lift stations
Pump control
Level control
Surface water monitoring
Landfill Leachate
Well monitoring
Ground water monitoring
Slug tests

Spec Sheets

Spare nose caps for KPSI level transducers.

Some Models in Stock

Starting at $43.70

KPSI Body Clamp Anode

Sacrificial anode body clamp for KPSI level transducers.

In Stock

$36.42

KPSI Cable Hanger

Cable hanger for KPSI level transducers.

In Stock

$36.42

KPSI Anti-Snag Cone Overmold

Anti-snag cone, one inch bore, overmold.

In Stock

$29.13

KPSI 840 Junction box

Junction box with 810 SuperDry Vent Filter.

In Stock

$450.02

KPSI 845 Junction Box

Junction box with 815 Aneroid Bellows.

In Stock

$464.57

FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

In Stock

$650.00

KPSI 827 Stainless Steel Nose Weight

Provides an additional 16.5oz of weight to transducers.

In Stock

$99.30

This product can be used in the following applications:

Explosive or Hazardous Areas

Here's how some of our customers use this product...

Level Measurement in a Water Tower

The Background: Our customer is a municipal water district that wants the ability to measure water level in an elevated water tank.

The Problem: Because the tank is elevated, a full tank would be about 120 feet whereas an empty vessel would still read around 70 feet.

The Solution: We recommended the KPSI 735 submersible hydrostatic level transducer. The 735 allows us to have a non-zero application range which results in accuracies about twice as good as transducers with a zero-based range.
