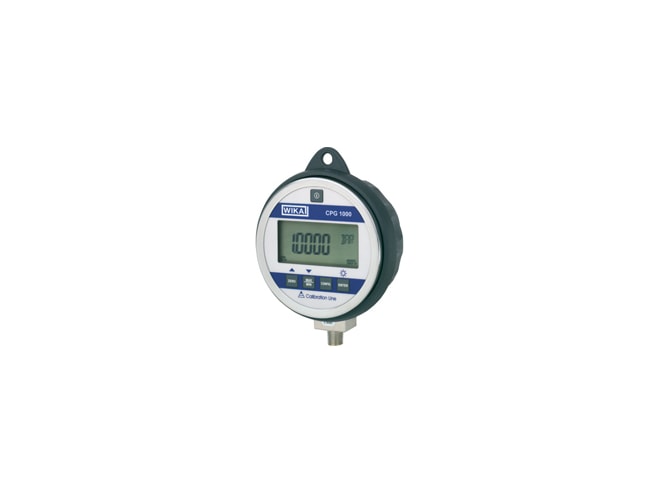

WIKA CPG1000 Test Gauge

Retired products cannot be ordered

The WIKA CPG1500 Pressure Gauge is the recommended replacement

View Company Reviews

Manufactured

By WIKA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Measuring ranges from 0 to 70 mbar up to 0 to 700 bar
Vacuum and absolute ranges available
Accuracy: 0.05% FS
Calibration certificate included
Intrinsically safe Version Ex nA IIB T6 per ATEX
Rugged stainless steel case meets NEMA 4/IP65
Data logger evaluation software CPGLog and complete test and service cases (incl. test pump) available

What's in the Box

Operating instructions
Calibration certificate 3.1 per DIN EN 10 204
3 x AA batteries
Adapter 1/4" NPT female on G 1/2 male
Protective rubber boot for case

The WIKA CPG1000 precision digital pressure gauge takes the concept of an analog test gauge, and brings it to a new level, as only digital calibrators can do. The CPG1000 combines the accuracy of digital technology with the simplicity of an analog gauge, and achieves performance, ease-of-use, and a feature set unmatched in the pressure measurement world.

The CPG1000 provides an accuracy of ± 0.05% of full scale readings of pressure in any one of 17 ranges. The CPG1000 is temperature compensated from 0 to 50°C. Readings may be displayed in any one of 19 standard engineering units or in custom units you define, to eliminate tedious conversion calculations.

The reading sample rate can be user-adjusted to match the type of measurement required. Standard applications usually use three measured values per second. If required, this rate can also be set to ten measured values per second. A power saving mode allows the CPG1000 to change automatically to a "sleep" mode. Thereby the battery life increases to up to 2,000 hours.

A MIN/MAX function is provided which instantly recalls the minimum and maximum pressure readings that have been automatically stored by the CPG1000. An auto power shutoff feature may be enabled for a preset time interval to extend battery life. Zero and TARE functions compensate sensor drifts. Password-protected field calibration of the CPG1000 may be initiated through the keypad. An RS-232 port allows pressure reading data to be extracted directly from the gauge for off-line analysis. An optional external 24 V DC power input is available for applications where the CPG1000 will be permanently incorporated into a process line. When activated, the damping function helps to stabilize heavily fluctuating pressures making them easier to read.
