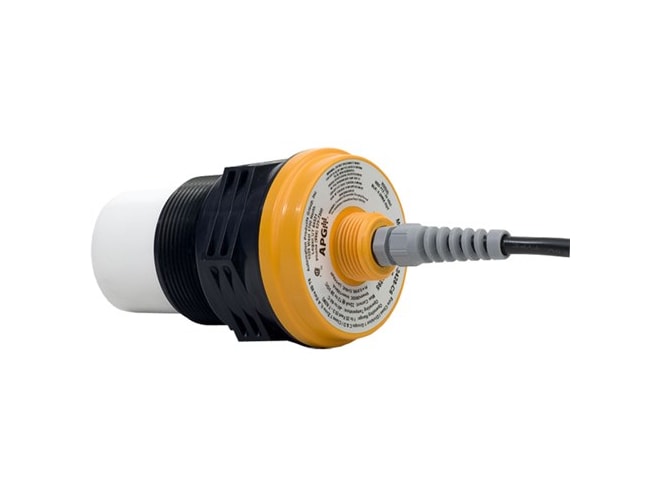

APG LPU-2428 Level Sensor

Loop-powered ultrasonic level sensor with a range from 1 to 25 feet and Class 1, Div 1 certification.

APG LPU-2428 Level Sensor
APG LPU-2428 Level Sensor

Starting at $1,076.00

View Company Reviews

Manufactured

By APG Automation Products Group
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Range: up to 25 ft. 7.6 m) detection range on liquids; 1 to 10 ft. (0.3 to 3 m) on solids
Accuracy: ±0.25% of detected range
Resolution: 0.1 in. (2.5 mm)
Loop powered 4-20 mA output
2-inch NPT mount
IP65 environmental rating
Calculations: Distance, Level, Volume, Flow
Beam Pattern: 9˚ off axis
Internal Temperature Compensation
Frequency: 69 kHz
Certifications:
- CSA C/US
- Class 1, Div. 1, Groups C & D
- Class 1, Zone 0, AEx Ia IIB T3

The APG LPU-2428 Level Sensor is a loop-powered ultrasonic level sensor with a range from 1 to 25 feet and Class 1, Div 1 certification. The LPU-2428 is designed with intelligent software for highly configurable measurement. The sensor can calculate distance, level, flow, and volume. In addition, the sensor features a 32-point linearization table for non-linear tanks and channels.

The LPU-24287 provides continuous level/distance measurements that are accurate to ±0.25% of detected range. Its durability, range, and simplicity make it a great sensor for many applications. With CSA hazardous location certification, and a durable housing with high chemical compatibility, the LPU-2428 ultrasonic sensor performs well under stress.
