APG RST-5003 Communication Module

Name: APG RST-5003 Communication Module
Price: 361.0 USD
Availability: BackOrder

Web-enabled device that offers affordable remote tank monitoring solutions by allowing up to ten sensors to be connected to an internet connection.

Starting at $361.00

View Company Reviewsby Trustpilot

Manufactured

By APG Automation Products Group
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Trustpilot

Overview

Features

Connect up to 10 sensors with RS-485 communication
Backward Compatible with 4-20 mA devices
Input: 0-2 Switches, 4-20 mA, Modbus, Tank Cloud Master
Output: 0-2 Isolated SSR, 2 Relays, Modbus, TCP/IP
Alarms
- Local Alarm: 2 Isolated Solid-State Relays
- Remote Alarm: Text (sms) Alarms, Email Notifications (both require online service)
Scaling options: volume, level, distance, weight, other user-defined units
Electrical
- 48 VDC POE (requires POE injector or switch), 24 VDC output to power sensor
- 24 VDC supply, No POE injector required
Polyamide housing
33 mm Din-Rail mount

This product is an accessory for the following products:

APG 1502I HU Hammer Union Pressure Transmitter

Recalibratable incoloy hammer union pressure transmitter, for land-based and offshore drilling installations.

Select options for pricing

APG IRU-2000 Level Sensor

Ultrasonic level detector designed for detecting solids and moving objects for presence/absence detection, object profiling, and more.

Starting at $544.00

APG IRU-2420 Level Sensor

Ultrasonic level sensors designed with flexibility in mind suitable for hazardous locations classified under CSA Class 1, Div. 2.

Starting at $733.00

APG IRU-3430 Level Sensor

Ultrasonic level meter with CSA Class 1, Div. 2 certification and increased power for better detection in difficult environments.

Starting at $883.00

APG IRU-5000 Level Sensor

Short range (79 inch) ultrasonic level sensor with CSA Class 1, Div. 2 certification for small tanks & totes.

Starting at $765.00

APG IRU-6420 Level Sensor

Ultrasonic level sensors optimized for data logging with the inclusion of an excitation feature .

Starting at $728.00

APG IRU-9400 Level Sensor

Ultrasonic level sensor with a more sensitive transducer to detect difficult targets such as non-reflective and/or soft surfaces.

Starting at $658.00

APG LOE Level Sensor

High performance ultrasonic level sensor provides flexible remote monitoring for any network connection.

Starting at $1,022.00

APG LPU-2127 Level Sensor

Loop-powered ultrasonic level sensor with a range from 1 to 25 feet, integrated keypad / LCD and Class 1, Div 2 certification.

$1,125.00

APG LPU-2428 Level Sensor

Loop-powered ultrasonic level sensor with a range from 1 to 25 feet and Class 1, Div 1 certification.

Starting at $1,076.00

APG MNU IS Modbus Ultrasonic Level Sensor

Low power, intrinsically safe rated depth measurement from 1 to 25 feet with RS-485 Modbus RTU output.

Starting at $679.00

APG MNU Level Sensor

High performance ultrasonic level sensor with Modbus flexibility and Tank Cloud compatibility.

Starting at $597.45

APG MPI-E Level Sensor

Magnetostrictive float level transmitter with intrinsically safe wiring for hazardous locations, 0.5-inch stem diameter.

Select options for pricing

APG MPI-F Level Sensor

Intrinsically safe, flexible, magnetostrictive float level transmitter for installation in tall tanks.

Select options for pricing

APG MPI-R Level Sensor

Magnetostrictive float level transmitter with intrinsically safe wiring for hazardous locations, 1-inch stem diameter.

Select options for pricing

APG MPX-E Chemical Level Transmitter

Explosion-proof liquid level sensor with chemical-resistant coating on 0.5 diameter 316L stainless steel stem.

Select options for pricing

APG MPX-E Level Transmitter

Explosion-proof liquid level sensor with 0.5in diameter 316L stainless steel stem.

Select options for pricing

APG MPX-F Level Transmitter

Flexible liquid level sensor appropriate for taller tanks.

Select options for pricing

APG MPXI-F Series Level Sensors

Explosion proof flexible stainless steel and PVDF stem magnetostrictive probe level sensors.

Select options for pricing

APG MPX-R Level Transmitter

Explosion-proof liquid level sensor for harsh applications.

Select options for pricing

APG PRL Series Pulse Radar Level Transmitter

True Echo pulse radar level transmitter for liquids, 17, 50 or 100ft ranges available.

Select options for pricing

APG PRS Series Pulse Radar Level Transmitter

True echo dual frequency pulse radar Level Transmitter For Solids.

Select options for pricing

APG PRX Series Pulse Radar Level Transmitter

Explosion proof pulse radar level transmitter, dependable level readings in Class I, Div 1, and Class II/III, Div 1 haz.

Select options for pricing

APG PT-500 Pressure Transducer

Rugged submersible pressure transmitter designed for tank liquid level or well depth measurement, in water and wastewater applications.

Starting at $553.25

APG 1502 HU Hammer Union Pressure Transmitter

Hammer union pressure transducer with 1502 process connection is built for extreme pressure, high vibration, and rough handling.

RETIRED

APG 2202 HU Hammer Union Pressure Transmitter

Hammer union pressure transducer with 2202 process connection is built for extreme pressure, high vibration, and rough handling.

RETIRED

Description

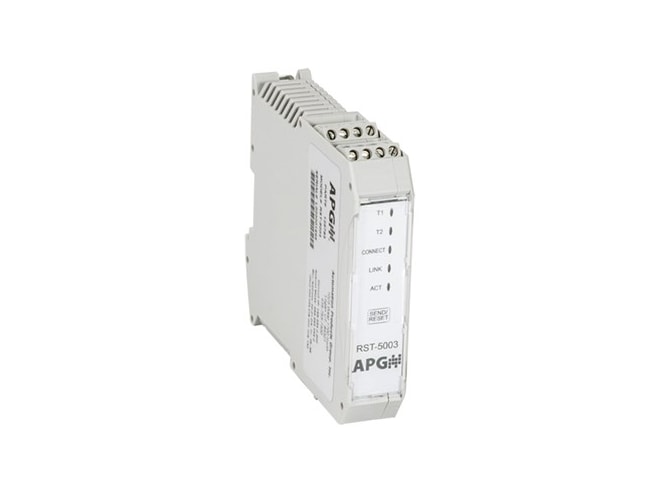

The APG RST-5003 communications module is a web-enabled device that offers affordable remote tank monitoring solutions by allowing up to ten sensors to be connected to an internet connection and posting the readings to a secure website, sending you an email or a text alarm to your cell phone.

The APG RST-5003 communications module is designed to work with any APG Tank Cloud sensors as well as any other 4-20 mA or modbus RS-485 device.

Unlike competing methods for remote monitoring, the RST-5003 simply connects to a pre-existing Internet connection via an Ethernet cable - be it landline, radio, cellular, or satellite. Set-up is extremely easy, simply connect the RST-5003 web enabled control module to any Tank Cloud daisy-chain network, or any 4-20mA sensor, via the input terminal and plug in an Ethernet cable. The module will send sensor data through the Ethernet cable to a local area network or the Internet.

In addition to the alarming options with our online data portal, the RST-5003 control module has up to two isolated solid-state relays for local alarms and control.
