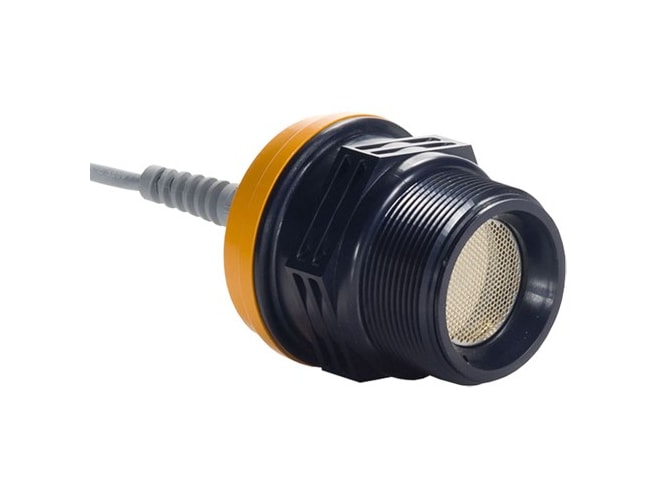

APG IRU-9400 Level Sensor

Ultrasonic level sensor with a more sensitive transducer to detect difficult targets such as non-reflective and/or soft surfaces.

APG IRU-9400 Level Sensor
APG IRU-9400 Level Sensor

Starting at $658.00

View Company Reviews

Manufactured

By APG Automation Products Group
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Measuring range: 0.5 to 35 feet for solids and liquids
Accuracy: ±0.25% of detected range
Output:
- 4-20 mA
- 4-20 mA with (2) NPN outputs
- Selectable 0-2.5 V/0-5 V with optional RS-232
0.1 inch resolution
Easily configured for obstacle detection applications
Mounting: 2-inch NPT
Beam Pattern: 9˚off axis
Internal Temperature Compensation
Supply Voltage: 12-28 VDC
CSA general purpose certification
Programming via RST-3001 Programming Module
Internet Connectivity with RST-5003
NEMA 12 rated PC/PET housing

The APG IRU-9400 Level Sensor is an ultrasonic level sensor with a more sensitive transducer to detect difficult targets such as non-reflective and/or soft surfaces. With the more sensitive transducer and superior range, the IRU-9400 is well suited for object detection applications. The sensor is not sealed for harsh environments and is recommended for use indoors and away from dust.

The IRU-9400 series provides a versatile range from 6 inches to 35 feet with a basic accuracy of ±0.25% of detected range. The sensors are designed for a variety of applications, and therefore have ample programming options to accommodate many needs. Output options include: 4-20mA, 4-20 mA plus 2 NPN relay outputs, selectable 0-2.5 V/0-5V, and selectable 0-2.5 V/0-5V with RS-232.
