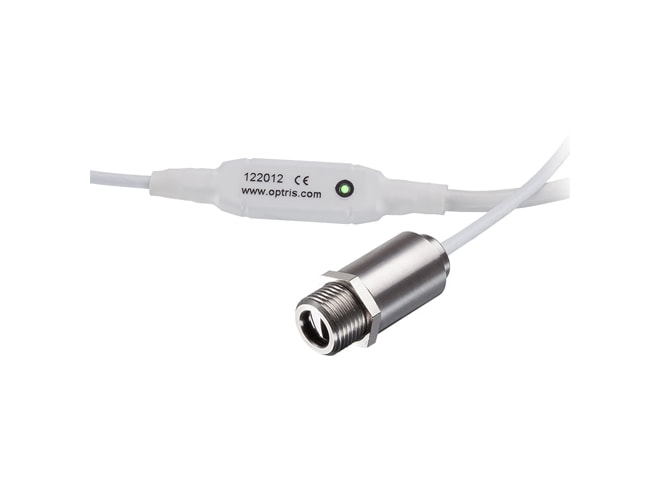

Optris CSmicro 2M Infrared Temperature Sensor

Compact, fixed infrared pyrometer measures the temperature of metals from 482 to 2912°F, 1.6 µm spectral range.

Optris CSmicro 2M Infrared Temperature Sensor — Optris CSmicro 2M Infrared Thermometer

Starting at $510.00

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Family

CSmicro Series

Product Manual Product Specs

Features

Temperature range:
- 482 to 1472°F (250 to 800°C) (2ML)
- 725 to 2912°F (385 to 1600°C) (2MH)
Spectral range: 1.6 µm
Accuracy: ±0.3%
Optical resolution:
- 40:1 (2ML)
- 75:1 (2MH)
Output type:
- CSMV model: 0 to 5V, 0 to 10V
- CSMA model: 4 to 20mA (2 wire)
Response time: 8 ms (mA version: 20 ms)
Stainless steel housing
IR mobile App

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

The Optris CSmicro 2M Infrared temperature sensor has a spectral range of 1.6µm and a temperature measuring range of 482 to 2912°F (250 to 1,600°C). The CSmicro 2M features a small infrared measuring head that is well suited for installation in very limited spaces and allows for an especially cost-efficient mechanical process integration.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Spec Sheets

Optris CSmicro 2M Infrared Thermometer Datasheet PDF (432 KB)

Manuals

Optris CSmicro 2M Infrared Thermometer Manual PDF (1.6 MB)

Links

Software

Optris Compact Connect Software

Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

Accessories

Please consider these optional accessories.

Optris ACCTMB Mounting Bolt

Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

Optris CT / CS Mounting Bracket

Optris CT / CS Mounting Bracket

Available as 1 or 2 axis & double hole M12, designed for 12mm sensing heads.

Some Models in Stock

Starting at $28.00

Optris ACCTRAM Right Angle Mirror

Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

Optris ACCSCERT Calibration Certificate

Optris ACCSCERT Calibration Certificate

Certificate of calibration for CS/ CSmicro LT with 3 reference temperatures.

Optris ACCTTAM25 Thread Adapter

Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .

Optris ACCTMG Mounting Fork

Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

Optris ACC Air Purge Collar

Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Some Models in Stock

Starting at $38.00

Optris ACCTPW Protective Window

Optris ACCTPW Protective Window

For LT series, same mechanical size as CF lens, available with external thread M12x1.

Starting at $43.00

Optris ACCTCF CF Lens

Optris ACCTCF CF Lens

For LT series, available with external thread M12 x 1.

Starting at $55.00

Optris ACCSMIAC IR App Connector

Optris ACCSMIAC IR App Connector

USB adapter cable with Micro-USB plug and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows).

Optris ACCTTAS Tilt Assembly

Optris ACCTTAS Tilt Assembly

For heads with optical resolution ≥10:1.
