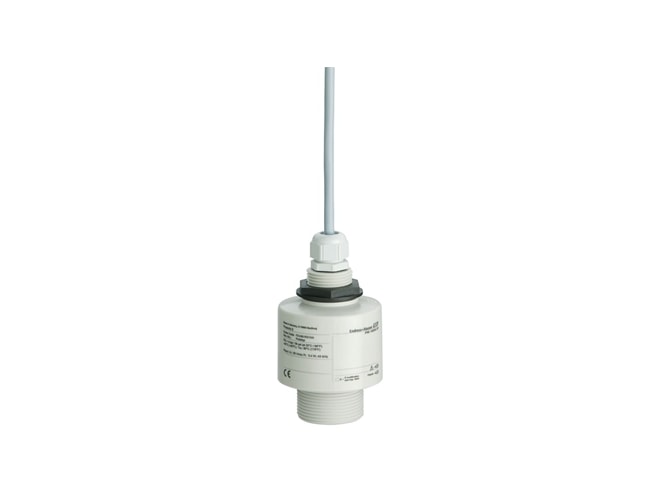

E+H Prosonic FDU90 Ultrasonic Level Sensor

Name: E+H Prosonic FDU90 Ultrasonic Level Sensor
Price: 620.47 USD
Availability: InStock

Integrated temperature sensor for Time-of-Flight correction, hermetically welded PVDF sensor.

Starting at $620.47

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Measuring ranges:
- Liquids: 3m (9.8ft)
- Solids: 1.2m (3.9ft)
Threaded process connections
Reduced build-up formation
Integrated automatic sensor detection
±2mm + 0.17% of measured distance accuracy
4-wire (HART, PROFIBUS DP) communication
Weather resistant and flood-proof (IP68)
Hermetically welded PVDF sensor
Time-of-Flight correction
Integrated heating against ice

E+H Prosonic FDU90 Ultrasonic Level Sensor is designed for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 3m (9.8ft), solids 1.2m (3.9ft).

Spec Sheets

E+H Prosonic FDU90 Level Measurement Datasheet PDF (1.2 MB)

Other

Instrumart's Level Application Form (141 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Prosonic S FMU90 Ultrasonic Level Transmitter

Level measurement of fluids and bulk materials with one or two sensors for measuring of up to 148 ft (45 m) and level limit detection.

Mfg. has some models in stock

Starting at $1,950.71

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FDU90-QN6AA Show Configuration	$1,223.71	4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
