E+H Prosonic S FMU90 Ultrasonic Level Transmitter

Level measurement of fluids and bulk materials with one or two sensors for measuring of up to 148 ft (45 m) and level limit detection.

E+H Prosonic S FMU90 Ultrasonic Level Transmitter - Field Housing

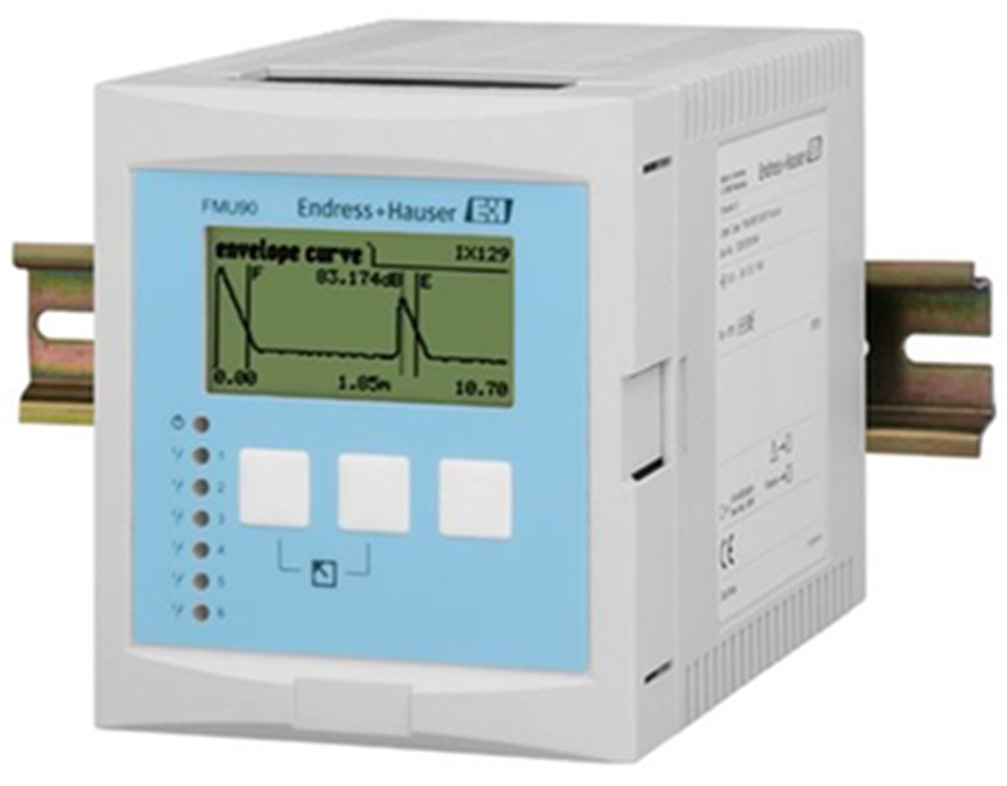

E+H Prosonic S FMU90 Ultrasonic Level Transmitter - Rail Housing

Starting at $1,950.71

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

±0.2% of maximum span of sensor accuracy
0.04in (1mm) resolution
3 Hz maximum measuring frequency
4-20 mA output with HART
Six-line, plain text display
Average, difference, and sum calculations
15 languages selectable
Field housing: IP66 / NEMA 4x
DIN rail housing: IP20
ATEX II 3D

The E+H Prosonic S FMU90 transmitter features continuous, non-contact level measurement of fluids, pastes, sludge, and powdery to coarse bulk solids. The transmitter also measures flow in open channels and weirs with one or two sensors, including pre-programmed and selectable linearization for the most common flumes and weirs. It features up to six relays for tendency alarm, flow measurement with backwater or sludge detection, up to three totalizers and three counters, and counting or time pulse output for control of external units. Integrated or external temperature sensors enable time-of-flight correction.

The FMU90 transmitter offers a one- or two-channel version and the choice of field housing or top hat rail housing for control cabinet instrumentation. The display features envelope curves for quick and simple diagnosis, and the supplied "FieldCare" operating program enables easy operation, diagnosis, and measuring point documentation.

Spec Sheets

E+H Prosonic S FMU90 Ultrasonic Level Transmitter Datasheet PDF (1.4 MB)

Manuals

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Housing	Power Supply	Level Input	Output	Price	Available
FMU90-N31CA161AA1A Show Full Configuration	CSA General Purpose	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$2,517.81	7 in stock
FMU90-L31CA162AA1A Show Full Configuration	Non-hazardous area + EAC marking	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	2x 0/4-20mA HART	$2,839.31	6 in stock
FMU90-L31CA262AA1A Show Full Configuration	Non-hazardous area + EAC marking	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	2x sensor FDU9x/8x	2x 0/4-20mA HART	$3,160.81	4 in stock
FMU90-N41CA132BA1A Show Full Configuration	CSA General Purpose	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	2x 0/4-20mA HART	$3,417.27	4 in stock
FMU90-J43CB111AA1A Show Full Configuration	ATEX II 3D	Field housing aluminum, IP66 NEMA4x	10.5-32 VDC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$3,079.42	1 in stock
FMU90-N11CA131AA1A Show Full Configuration	CSA General Purpose	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$2,431.12	1 in stock
FMU90-N12CA132AA1A Show Full Configuration	CSA General Purpose	DIN rail mounting PBT, IP20	90-253 VAC	1x sensor FDU9x/8x	2x 0/4-20mA HART	$2,611.77	1 in stock
FMU90-N21CA131AA1A Show Full Configuration	CSA General Purpose	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$2,752.62	1 in stock
FMU90-N21CB132AA3A Show Full Configuration	CSA General Purpose	Field housing polycarbonate, IP66 NEMA4x	10.5-32 VDC	1x sensor FDU9x/8x	2x 0/4-20mA HART	$3,074.12	1 in stock
FMU90-R11CA112AA1A Show Full Configuration	Non-hazardous area	Field housing polycarbonate, IP66 NEMA4x	90-253 VAC	1x sensor FDU9x/8x	2x 0/4-20mA HART	$2,496.16	1 in stock
FMU90-R11CB212AA1A Show Full Configuration	Non-hazardous area	Field housing polycarbonate, IP66 NEMA4x	10.5-32 VDC	2x sensor FDU9x/8x	2x 0/4-20mA HART	$2,817.66	1 in stock
FMU90-R12CA111AA1A Show Full Configuration	Non-hazardous area	DIN rail mounting PBT, IP20	90-253 VAC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$2,033.81	1 in stock
FMU90-R12EA161AA1A Show Full Configuration	Non-hazardous area	DIN rail mounting PBT, IP20	90-253 VAC	1x sensor FDU9x/8x	1x 0/4-20mA HART	$2,597.30	1 in stock

Base Price:: $1,809.86
Approval: CSA General Purpose
Application: Universal instrument (level + flow + additional pump control) (+$321.50)
Housing: Field housing polycarbonate, IP66 NEMA4x (+$140.85)
Display: Illuminated display + keypad (+$223.95)
Power Supply: 90-253 VAC
Level Input: 1x sensor FDU9x/8x
Switch Output: 3x relay, SPDT (+$256.46)
Output: 2x 0/4-20mA HART (+$321.50)
Additional Output: 4x point level switch + 1x temperature PT100/FMT131 (+$343.15)
Language: English, German, Dutch, French, Spanish, Italian, Portuguese
Additional Options: Basic version
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMU90-A11CA111AA1A	Call for information	1	Call to order
FMU90-R31CA132AA1A1	Call for information	7	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
