APG MPI-R Level Sensor

Magnetostrictive float level transmitter with intrinsically safe wiring for hazardous locations, 1-inch stem diameter.

APG MPI-R Level Sensor
APG MPI-R Level Sensor

Select options for pricing

View Company Reviews

Manufactured

By APG Automation Products Group

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Features

1in stem diameter
4 to 25ft (1.22 to 7.62m) stem length
0.04in (1mm) resolution
±0.05% of full scale accuracy
-40 to 185°F (-40 to 85°C) operating temperature
Configurable RS-485 (Modbus RTU) output with surge protection
Dual level (interface) measurement
NEMA 4X, IP65
CSA, ATEX, IECEx approvals

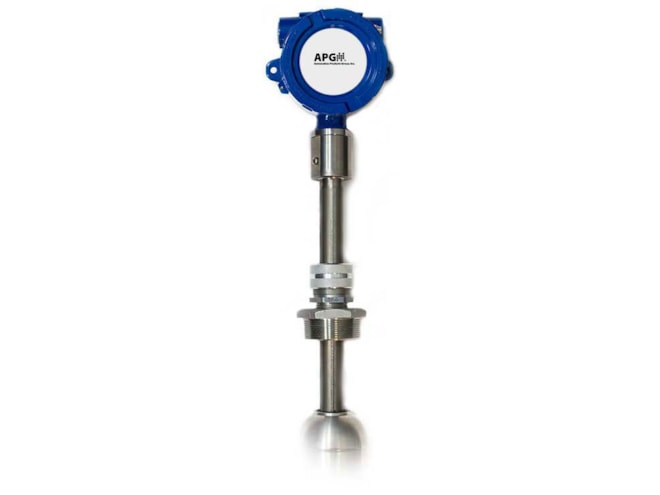

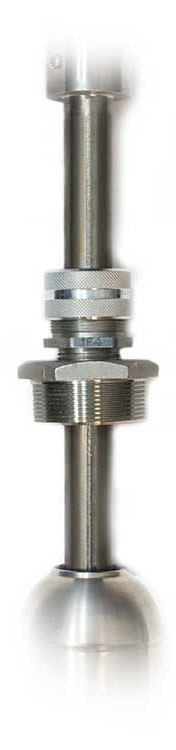

The APG MPI-R level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. It is ideal for taking both the interface level and total volume measurements. The MPI-R is designed to be used in high turbidity environments in harsh applications and hazardous locations, and its large, buoyant, and robust float allows for use in harsh applications where fouling or buildup might otherwise be of concern. The MPI-R sensor allows up to seven optional digital temperature sensors.

The MPI series of level sensors pair with an MDI display to create a self-contained, intrinsically safe level measurement and display system with no barriers required.
