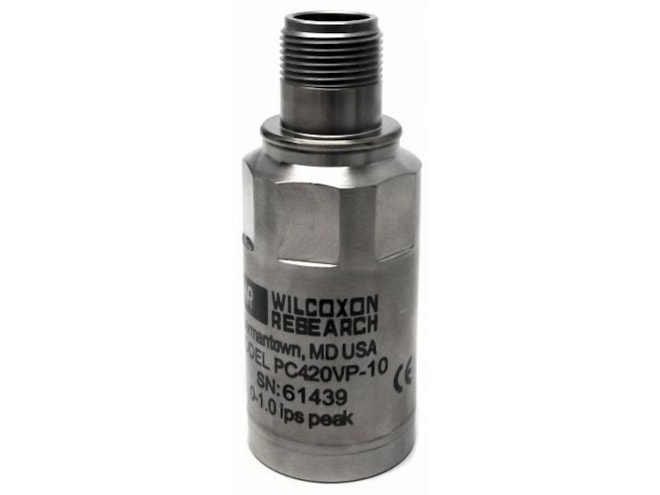

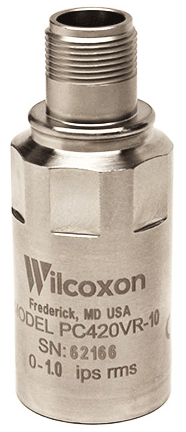

Wilcoxon Sensing Technologies PC420V Series Vibration Transmitter
Peak or RMS velocity loop powered sensors for continuous monitoring of vibration levels, case isolated, internally shielded.
Overview
Features
- 4-20mA output proportional to peak or RMS velocity vibration
- 0.5, 1.0, 2.0, 3.0, or 5.0in/sec full-scale measurement range
- ±5% tolerance at full scale
- Frequency response:
- ±10%: 10Hz to 1kHz
- ±3 dB: 3.5Hz to 2kHz
- ±2% repeatability
- 700Ω max loop resistance at 24VDC
- 250g peak vibration limit
- 2,500g peak shock limit
- Hermetic sealing
- ESD, overload, and reverse wiring protection
- PZT ceramic/shear sensing element
- Top exit, 2-pin, MIL-C-5015 style output connector
- R6-type mating connector
Description
The Wilcoxon Sensing Technologies PC420V series vibration transmitter provides a 4-20mA output proportional to velocity vibration, allowing for continuous trending of overall machine vibration. This trend data can easily be compared against standard vibration guides, can alert users to changing machine conditions, and can help guide maintenance in prioritizing the need for service. The choice of RMS or peak output allows the user to choose the sensor that best fits their requirements. The PC420V is easily integrated into existing process control systems, such as PLC, DCS, or SCADA systems.
The PC420V is constructed with stainless steel and is corrosion-resistant. It features a 1/4-28 tapped hole for mounting and has a 2-pin MIL-C-5015 style output connector and an R6 type mating connector. The PC420V is manufactured in an ISO 9001 facility.
