VPInstruments VPFlowTerminal Kit

Wall mount display kit that includes either the VPFlowScope In-line Flow Meter, VPFlowScope Probe or VPFlowScope DP Flow Meter.

VPInstruments VPFlowTerminal Kit — VPInstruments VPFlowTerminal Wall Mount Display

VPInstruments VPFlowTerminal Wall Mount Display

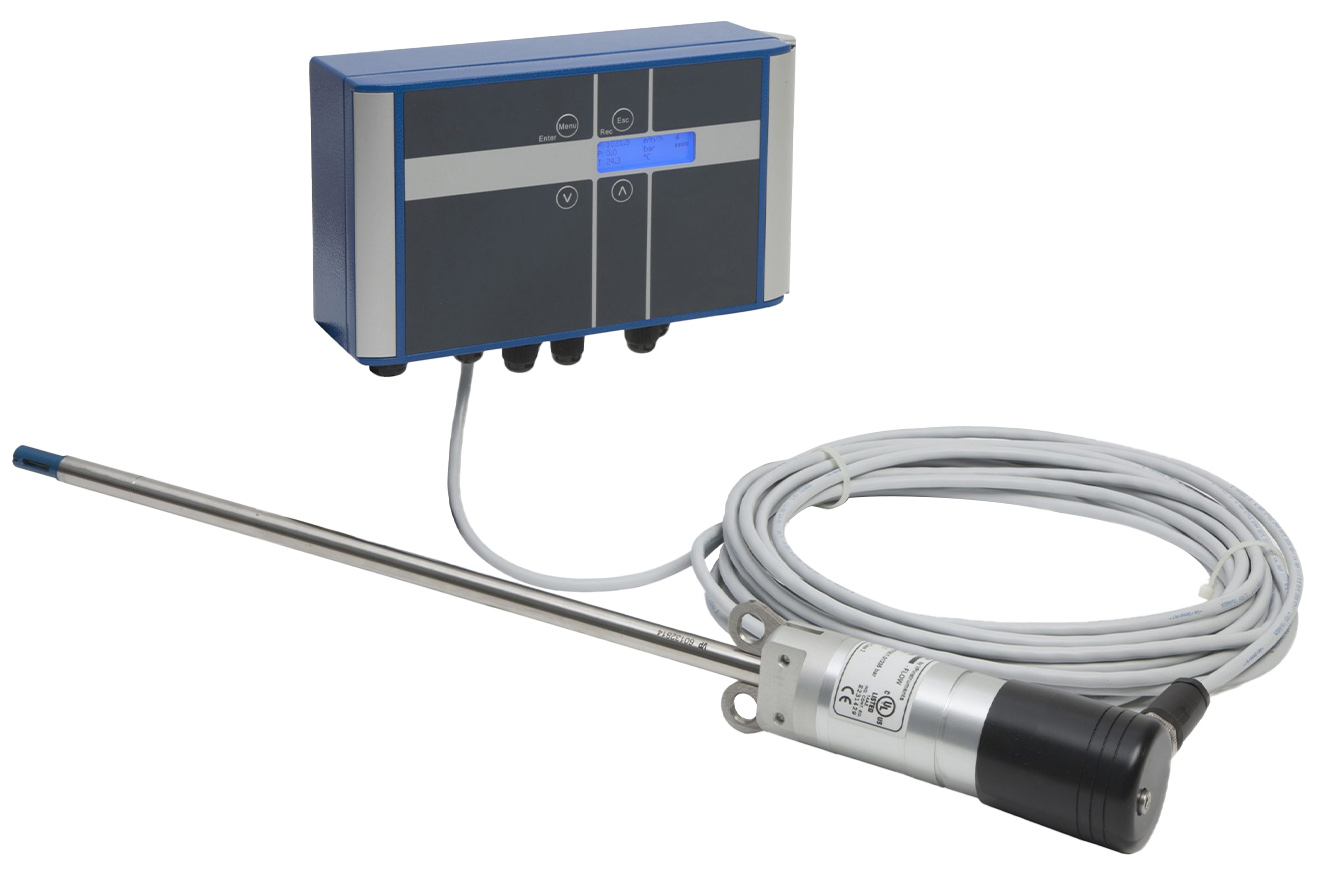

VPInstruments VPFlowTerminal VPFlowScope Probe Kit
VPInstruments VPFlowTerminal VPFlowScope In-Line Kit

Starting at $2,566.00

View Company Reviews

Manufactured

By VPInstruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

VPFlowTerminal:
- Wall mount display
- Built-in data logger
- M12, 5-pin connector for VPFlowScope Probe or DP input
  - 8-pin for VPFlowScope In-Line
- 4 analog input channels
- 3-line display with real-time information and configuration keys
- Built-in power supply
- Easy data retrieval via USB and VPStudio software to .CSV file.
See VPFlowScope In-Line Flow Meter, VPFlowScope DP Flow Meter, and VPFlowScope Probe Flow Meter for more specs

What's in the Box

VPFlowTerminal pre-wired with 32.8ft cable
VPFlowScope In-line, VPFlowScope DP or VPFlowScope Probe (depending on kit selection)
Mini USB cable
Flow direction sensitivity
Tubing kit (In-line only)
Compression fitting with Teflon ferrule (DP or Probe only)
Safety cable (DP or Probe only)
Calibration report
User manual
VPStudio software

The VPInstruments VPFlowTerminal has 5 sensor inputs: 1 input for your VPFlowScope flow meter and 4 generic analog inputs. It can record up to 8 channels. This makes the collection and analysis of your compressed air data fast and easy.

The VPInstruments VPFlowScope In-Line Flow Meter is ideal for point-of-use consumption measurement in compressed air systems. It measures mass flow, temperature, and pressure simultaneously and in both directions. It can be used for both in-line air flow and in-line gas flow measurement.

The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements.

The VPInstruments VPFlowScope Probe Flow Meter measures mass flow, temperature, and pressure simultaneously. This probe can handle various diameters and measures in both directions.

Spec Sheets

VPInstruments VPFlowTerminal Datasheet (294 KB)

Manuals

VPInstruments VPFlowTerminal Manual (621 KB)

Links

All possible part numbers

Replacement Parts

VPInstruments VPFlowScope Probe Sensor Module

VPInstruments VPFlowScope Probe Sensor Module

Replacement thermal mass sensor for the VPFlowScope Probe Flow Meter.

VPInstruments VPFlowScope DP Replacement Sensor Module

VPInstruments VPFlowScope DP Replacement Sensor Module

Exchangeable differential pressor sensor for the VPFlowScope DP Flow Meter.

VPInstruments VPFlowScope In-Line 8-Pin M12 Sensor Module

VPInstruments VPFlowScope In-Line 8-Pin M12 Sensor Module

Replacement thermal mass in-line sensor module with 8-pin M12 connector for the VPFlowTerminal Kit.

Starting at $1,073.00

Accessories

Please consider these optional accessories.

VPInstruments Power Cable

VPInstruments Power Cable

110-240 VAC power cable with 1.9m (6.3ft) length. Can be used with VPFlowTerminal.

VPInstruments VPFlowScope Pressure Upgrade

VPInstruments VPFlowScope Pressure Upgrade

High pressure range configuration for the VPFlowScope Flow Meters, 35bar / 500psi max.

Starting at $359.00

VPInstruments VPFlowScope Mini USB Cable

VPInstruments VPFlowScope Mini USB Cable

For utilization of VPStudio Software.

VPInstruments VPFlowScope Bi-Directional Flow Upgrade

VPInstruments VPFlowScope Bi-Directional Flow Upgrade

Bidirectional flow sensitivity configuration for the VPFlowScope Probe / In-Line Flow Meter.

Starting at $155.00

VPInstruments VPFlowScope In-Line NPT Tubing Kit

VPInstruments VPFlowScope In-Line NPT Tubing Kit

NPT tubing kit in 0.5, 1 and 2in sizes for use with the VPFlowScope In-Line Flow Meter.

Some Models in Stock

Starting at $160.00

This product can be used in the following applications:

Compressed Air
