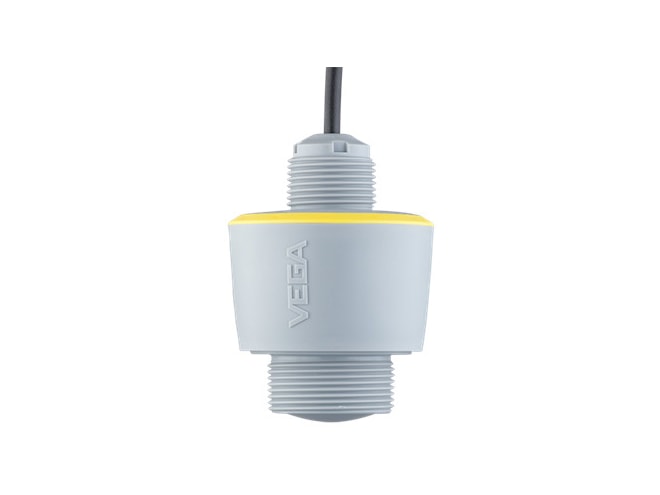

VEGA VEGAPULS C 11 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 10m, accuracy ±5mm, 10m PVC cable.

Starting at $819.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Measuring range up to 10m (32.81ft)
  • Deviation ≤ 5mm
  • Beam angle 8°
  • Measuring frequency W-band (80GHz technology)
  • Output signal 4 to 20mA
  • Process pressure -1 to 3bar (-100 to 300kPa/-14.5 to 43.51psig)
  • Process temperature -40 to 60°C (-40 to 140°F)
  • Bluetooth 5.0
  • Protection rating IP66/IP68 (3bar, 24h) acc. to IEC 60529, Type 4X/6P acc. to UL 50

The VEGA VEGAPULS C 11 wired radar sensor is ideal for non-contact level measurement in all standard applications where a high degree of protection is required. It is particularly suitable for level measurement in water treatment, pumping stations, and rain overflow basins, for flow measurement in open channels and level monitoring, and for many other industrial applications. The sensor is suitable both for measuring liquids and for maintenance-free use on small bulk silos or bulk solids containers.

The VEGAPULS C 11 sensor emits a continuous radar signal through its antenna which is modulated in its frequency. The emitted signal is reflected by the medium and received by the antenna as an echo. The frequency difference between the emitted and received signal is proportional to the distance and depends on the filling height. The determined filling height is converted into a respective output signal and output as measured value.

The wetted parts of the instrument are made of PVDF. The process seal is made of FKM. The connection cable is PVC insulated. The housing is optimized for applications in the water/waste water industry and manufactured of PVDF. Due to the encapsulated cable gland, protection rating IP66/IP68 (3 bar) is achieved. The devices are constructed with two-wire electronics 4 to 20mA.

VEGA VEGAPULS C 11 Wired Radar Sensor Applications

  • Washing line
  • Water storage tank
  • Tomato pulper
  • Pumping station
