Name: VEGA VEGAMET 861 Controller
Price: 1165.0 USD
Availability: BackOrder

Starting at $1,165.00

View Company Reviews

Manufactured

By VEGA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

4 to 20mA/HART sensor input
Type of input (selectable):
- Active input sensor supply through VEGAMET 861
- Passive input sensor has own voltage supply
Measured value transmission:
- 4 to 20mA: analog for 4 to 20mA sensors
- HART protocol: digital for HART sensors (not with passive input)
0/4 to 20mA, 20 to 0/4mA current output
Relay output:
- Four operating relays, one can be configured as fail safe relay
- Switching voltage: max 250 V AC/60 V DC
- Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
ATEX / Europe, IEC / worldwide, UKEX approvals
IP66/IP67, Type 4X protection rating
Bluetooth 5.0
Simple and reliable commissioning and diagnosis of the measuring points via smartphone
Easy-to-read display from a distance, even in sunlight and darkness
Secure measurement data memory on SD card

This product is an accessory for the following products:

VEGA VEGAPULS 11 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA output, measuring range up to 10m, accuracy ±5 mm.

Starting at $839.00

VEGA VEGAPULS 21 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available.

Starting at $1,169.00

VEGA VEGAPULS 31 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available, on-site display, 3-button operation.

Starting at $1,299.00

VEGA VEGAPULS C 11 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 10m, accuracy ±5mm, 10m PVC cable.

Some Models in Stock

Starting at $819.00

VEGA VEGAPULS C 21 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex-approval available.

Some Models in Stock

Starting at $1,139.00

VEGA VEGAPULS C 22 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, lateral cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex approval available.

Starting at $1,139.00

VEGA VEGAPULS C 23 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 30m, accuracy ±2 mm, 4 to 20mA, HART, SDI-12 or Modbus output, Ex-approval available.

Starting at $1,429.00

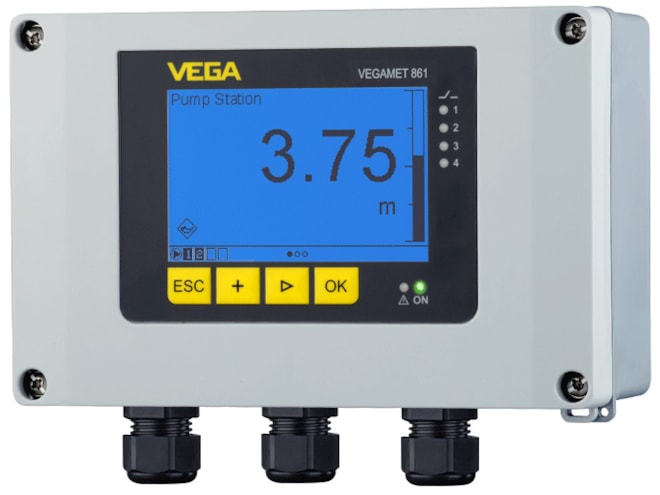

The VEGA VEGAMET 861 controller feeds the connected 4 to 20mA or HART sensor, processes the measured values, and displays them. A large display for data visualization is integrated in the housing designed for rough field conditions.

The VEGAMET 861 enables a simple conversion of pump controls, flow measurements on open channels, and weirs, totalizers, and data loggers. The VEGAMET 861 allows limit values to be reliably monitored and relays to be switched, for example, for an overfill protection according to WHG.
