Name: VEGA VEGAMET 342 Built-In Controller
Price: 979.0 USD
Availability: BackOrder

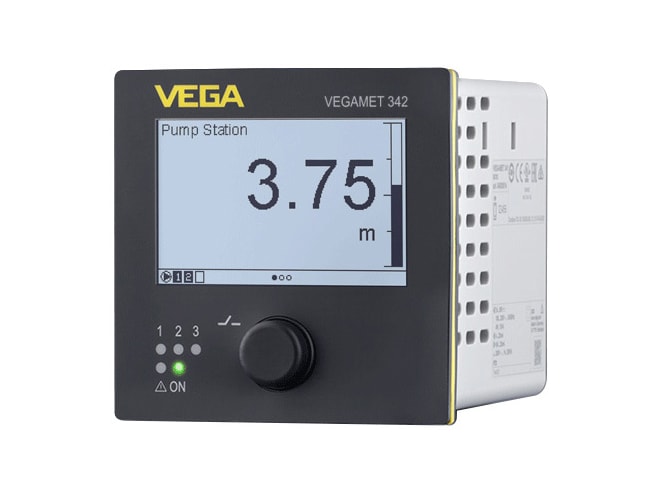

VEGA VEGAMET 342 Built-In Controller
VEGA VEGAMET 342 Built-In Controller in switching cabinet

Starting at $979.00

View Company Reviews

Manufactured

By VEGA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Two 4 to 20mA sensor inputs
Type of input (selectable):
- Active input sensor supply through VEGAMET 342
- Passive input sensor has own voltage supply
Two 0/4 to 20mA, 20 to 0/4mA current outputs
Relay output:
- 3 operating relays, one can be configured as fail safe relay
- Switching voltage: max 250 V AC/60 V DC
- Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
ATEX / Europe, IEC / worldwide, UKEX approvals
Intrinsic safety "i" explosion protection
IP20 protection (front), IP40 protection (instrument), IEC 60529
Bluetooth 5.0
Simple setup and diagnosis of measuring points via smartphone
Easy-to-read display from a distance, even in sunlight and darkness

This product is an accessory for the following products:

VEGA VEGAPULS 11 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA output, measuring range up to 10m, accuracy ±5 mm.

Starting at $839.00

VEGA VEGAPULS 21 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available.

Starting at $1,169.00

VEGA VEGAPULS 31 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available, on-site display, 3-button operation.

Starting at $1,299.00

VEGA VEGAPULS C 11 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 10m, accuracy ±5mm, 10m PVC cable.

Some Models in Stock

Starting at $819.00

VEGA VEGAPULS C 21 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex-approval available.

Some Models in Stock

Starting at $1,139.00

VEGA VEGAPULS C 22 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, lateral cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex approval available.

Starting at $1,139.00

VEGA VEGAPULS C 23 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 30m, accuracy ±2 mm, 4 to 20mA, HART, SDI-12 or Modbus output, Ex-approval available.

Starting at $1,429.00

The VEGA VEGAMET 342 built-in controller feeds the connected 4 to 20mA sensors, processes the measured values, and displays them. The built-in housing is ideal for mounting in the switching cabinet.

The VEGAMET 342 integrates a large display for data visualization as well as a turn/push button for easy adjustment on site. The VEGAMET 342 allows limit values to be reliably monitored and relays to be switched, for example, for overfill protection according to WHG. The multifunctional instrument enables simple implementation of pump controls, flow measurements on open channels and weirs, totalizers, and difference, sum and average value calculations. The VEGAMET 342 is suitable for many industrial sectors as well as plant manufacturers.
