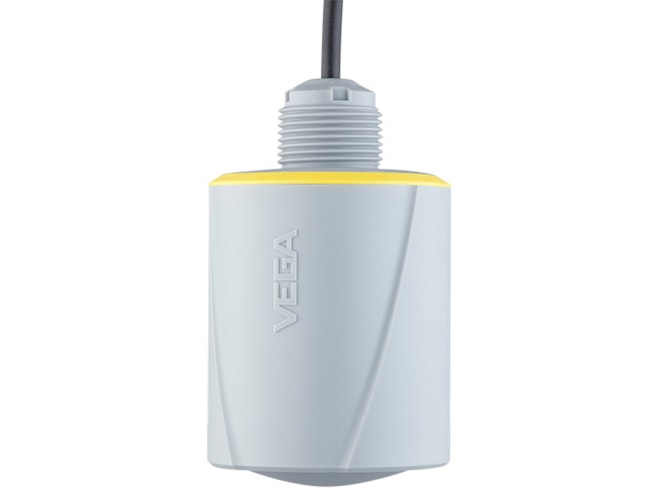

VEGA VEGAPULS C 23 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 30m, accuracy ±2 mm, 4 to 20mA, HART, SDI-12 or Modbus output, Ex-approval available.

Starting at $1,429.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs (3 Files)

Features

  • Measuring range up to 30m (98.43ft)
  • Deviation ≤ 2mm
  • Beam angle 4°
  • Measuring frequency W-band (80GHz technology)
  • Output signal 4 to 20mA/HART, Modbus, or SDI-12
  • Process pressure -1 to 3bar (-100 to 300kPa / -14.5 to 43.51psig)
  • Process temperature -40 to 80°C (-40 to 176°F)
  • Bluetooth 5.0
  • Protection rating IP66/IP68 (3bar, 24h) acc. to IEC 60529, Type 4X/6P acc. to UL 50

The VEGA VEGAPULS C 23 wired radar sensor is the ideal radar sensor for non-contact level measurement with high accuracy requirements in all standard applications where a high degree of protection and particularly good signal focusing are required. It is particularly suitable for level measurement in water treatment, in pumping stations and rain overflow basins, for flow measurement in narrow channels, for level monitoring in rivers and lakes and for many other industrial applications. The sensor is suitable both for measuring liquids and for use on bulk solids silos or bulk solids containers.

The sensor emits a continuous radar signal through the antenna. The emitted signal is reflected by the medium and received as an echo by the antenna. The frequency difference between the emitted and received signal is proportional to the distance and depends on the filling height. The determined filling height is converted into a respective output signal and output as measured value.

The wetted parts of the instrument are made of PVDF. The connection cable is PUR insulated. The housing is optimized for applications in the water/wastewater industry and manufactured of PVDF. Due to the encapsulated cable gland, protection rating IP66/IP68 (3 bar) is achieved.

VEGA VEGAPULS C 23 Wired Radar Sensor Applications

  • Water supply dam
  • Gauging station
  • Hopper
