E+H Prosonic S FMU95 Ultrasonic Level Transmitter

Level measurement of fluids and bulk materials with up to 10 sensors with Profibus DP output.

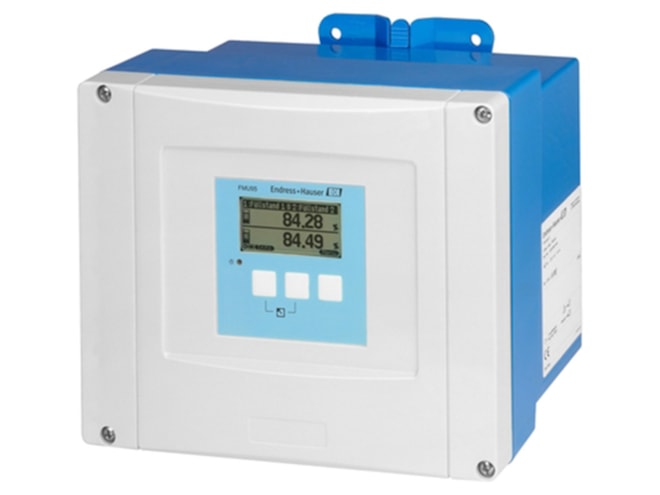

E+H Prosonic S FMU95 Ultrasonic Level Transmitter - Field Housing

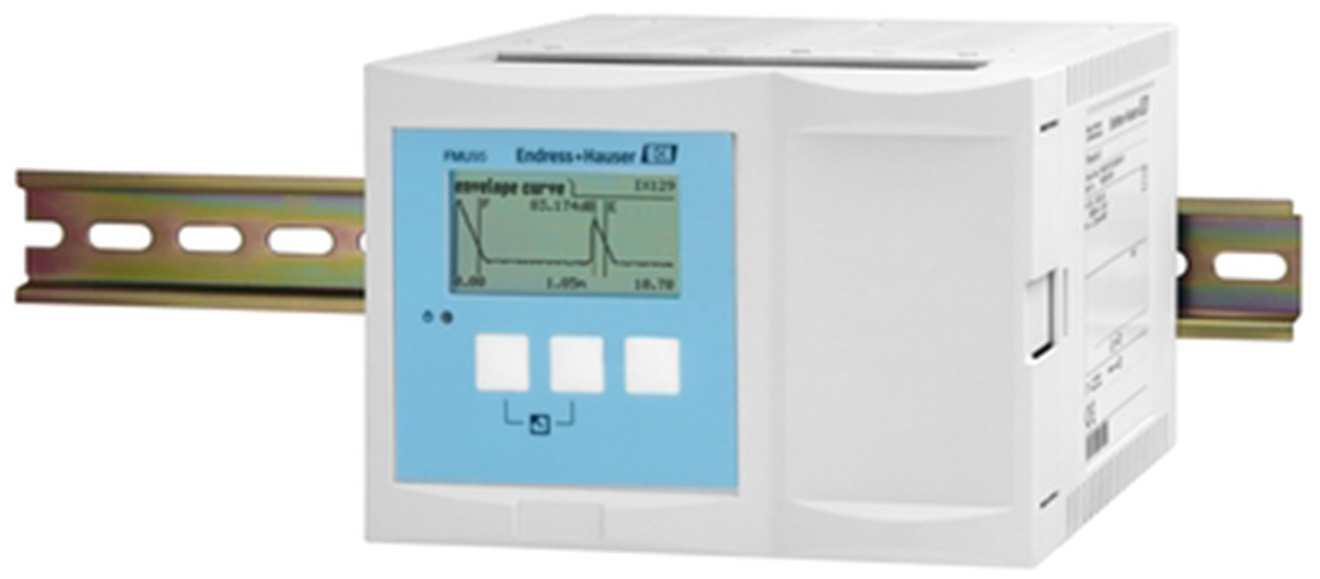

E+H Prosonic S FMU95 Ultrasonic Level Transmitter - Rail Housing

Starting at $5,417.40

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

±0.2% of maximum span of sensor accuracy
0.04in (1mm) resolution
Measuring frequency
- 0.2 Hz with 5 sensors
- 0.1 Hz with 10 sensors
Up to 20 measured values
Six-line, plain text display
Average and sum calculations
15 languages selectable
Field housing: IP66 / NEMA 4x
DIN rail housing: IP20
ATEX II 3D, CSA

The E+H Prosonic S FMU95 transmitter features continuous, non-contact level measurement of fluids, pastes, sludge, and powdery to coarse bulk solids. The transmitter also measures flow in open channels and weirs with five or ten sensors, including pre-programmed and freely configurable linearization curves for specific types of vessels. It features system integration via PROFIBUS DP with up to 20 measured values, and integrated or external temperature sensors enable time-of-flight correction.

The FMU95 transmitter offers a five- or ten-channel version and the choice of field housing or top hat rail housing for control cabinet instrumentation. The display features envelope curves for quick and simple diagnosis, and the supplied "FieldCare" operating program enables easy operation, diagnosis, and measuring point documentation.
